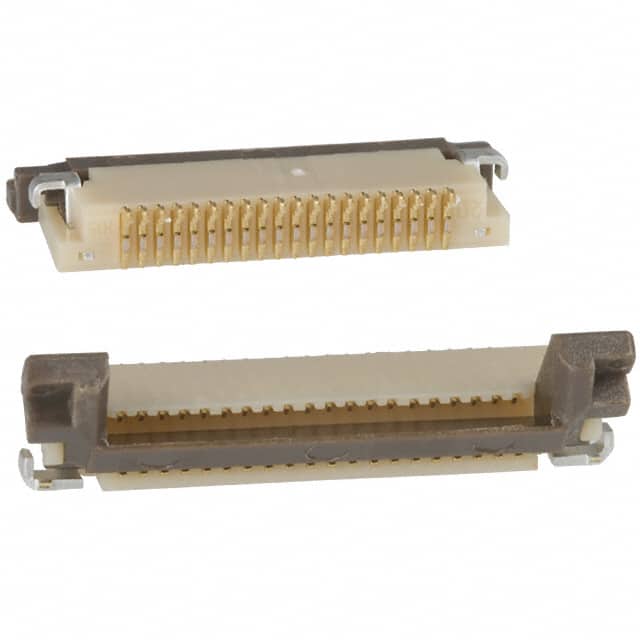

This FFC/FPC connector from Hirose Electric, model FH12A-20S-0.5SH(55), is designed for flexible flat cable connections. It offers 20 positions with a fine pitch of 0.5mm, suitable for space-constrained applications.
The connector has a voltage rating of 50V and features a Zero Insertion Force (ZIF) mechanism, facilitating easy and reliable cable insertion and removal without damaging the flexible cable. The contact finish is gold, and the contact material is phosphor bronze, ensuring good conductivity and durability.
Mounting is achieved via a surface mount, right angle configuration, with a height above the board of 2.00mm. The housing and actuator materials are Polyamide (PA), Nylon, and Polyphenylene Sulfide (PPS) respectively, contributing to its thermal and mechanical stability. The operating temperature range is -40°C to 85°C, and it meets UL94 V-0 flammability rating.
This connector is designed for FFC and FPC types and utilizes a flip lock for secure cable retention. The termination style is solder, and it is compatible with FFC/FPC thicknesses of 0.30mm. It is RoHS3 compliant and rated MSL 1.
The connector has 20 positions.
The pitch is 0.50mm.
The voltage rating is 50V.
It supports FFC and FPC flat flexible cable types.
The mounting type is Surface Mount, Right Angle.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
