| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

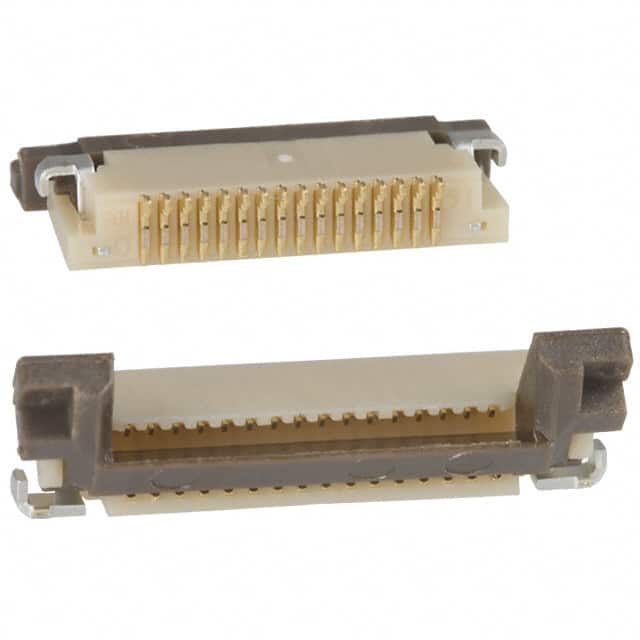

The Hirose FH12A-16S-0.5SH(55) is a 16-position FFC/FPC connector designed for reliable flat flexible cable interconnections. It features a 0.50mm pitch and a right-angle surface mount configuration, making it suitable for compact, space-constrained PCB designs.
The connector uses a Zero Insertion Force (ZIF) flip lock mechanism for easy cable insertion and secure retention. Contacts are gold-plated phosphor bronze, and the housing is made of polyamide (nylon) with a UL94 V-0 flammability rating. The actuator is constructed from polyphenylene sulfide (PPS).
This connector is rated for 50V and operates over a temperature range of -40°C to 85°C. It accepts FFC/FPC cables with a thickness of 0.30mm. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.22 | $1.22 |
| 25+ | $1.09 | $1.09 |
| 100+ | $1.04 | $1.04 |
| 250+ | $0.99 | $0.99 |
| 500+ | $0.97 | $0.97 |
| 1,000+ | $0.95 | $0.95 |
| 2,000+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 16 positions.
The pitch is 0.50mm.
The voltage rating is 50V.
It uses surface mount, right angle mounting.
Yes, it features a flip lock mechanism.
The operating temperature range is -40°C to 85°C.
The contact finish is gold.
