| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

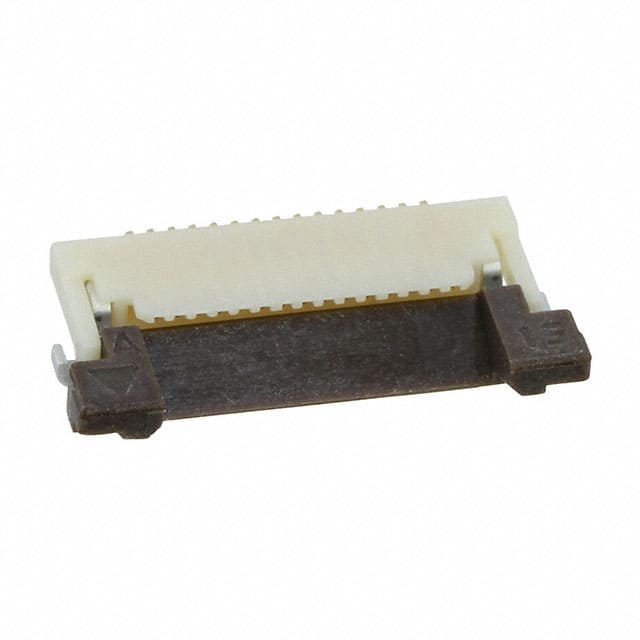

The Hirose FH12A-15S-0.5SH(55) is a 15-position FFC/FPC connector from the FH12A series, featuring a 0.5mm pitch and right angle surface mount orientation. It uses a top contact design with a flip lock actuator for secure cable retention. The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. Contacts are gold-plated phosphor bronze, the housing is polyamide (nylon) with a UL94 V-0 flammability rating, and the actuator is made of polyphenylene sulfide (PPS). It supports FFC and FPC cables up to 0.30mm thickness and incorporates zero insertion force (ZIF) technology for easy insertion and removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
| 10+ | $1.24 | $1.24 |
| 25+ | $1.11 | $1.11 |
| 100+ | $1.06 | $1.06 |
| 250+ | $0.99 | $0.99 |
| 500+ | $0.95 | $0.95 |
| 1,000+ | $0.94 | $0.94 |
| 2,000+ | $0.91 | $0.91 |
| 4,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 15 positions.
The pitch is 0.50mm.
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -40°C to 85°C.
Yes, it features zero insertion force (ZIF) with a flip lock actuator.
The contact finish is gold.
