| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,432 pcs
|
1432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,432 pcs
|
1432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

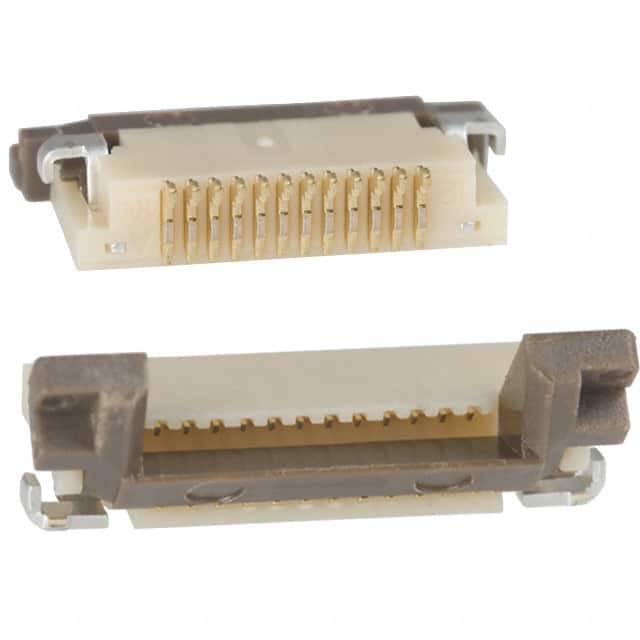

The Hirose FH12A-12S-0.5SH(55) is a 12-position FFC/FPC connector designed for surface mount, right angle mounting. It features a 0.50mm pitch and a Zero Insertion Force (ZIF) flip lock mechanism for easy cable insertion and secure retention. The connector uses top contacts and supports FFC or FPC cables with a thickness of 0.30mm.
The housing is made of Polyamide (PA) Nylon with a UL94 V-0 flammability rating, ensuring safety in electronic assemblies. Contacts are gold-plated phosphor bronze for reliable conductivity and corrosion resistance. The actuator is constructed from Polyphenylene Sulfide (PPS).
This connector is rated for 50V operation and can withstand temperatures from -40°C to 85°C, making it suitable for a wide range of applications. The height above board is 2.00mm (0.079 inches), enabling compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.10 | $1.10 |
| 25+ | $0.98 | $0.98 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.88 | $0.88 |
| 500+ | $0.84 | $0.84 |
| 1,000+ | $0.83 | $0.83 |
| 2,000+ | $0.80 | $0.80 |
| 4,000+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
0.50mm (0.020 inches).
50V.
Surface Mount, Right Angle.
-40°C to 85°C.
Gold.
Yes, it has a Flip Lock mechanism and is a Zero Insertion Force (ZIF) connector.
