| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,965 pcs
|
1965 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-05-08 03:15:20 |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

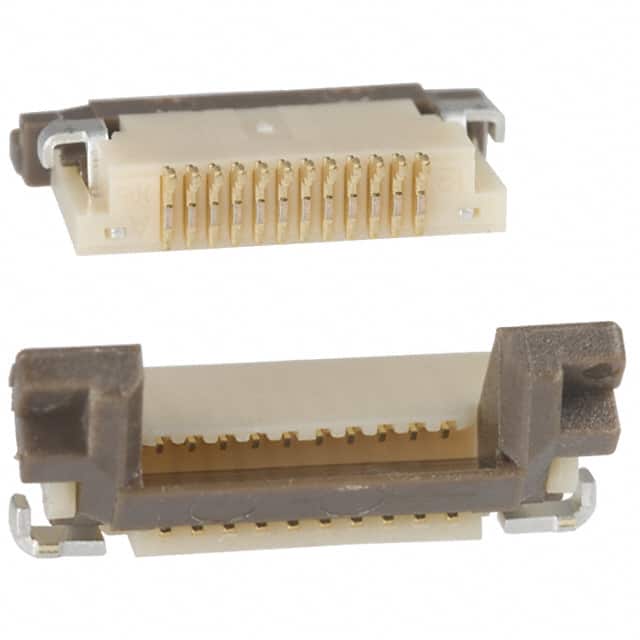

The FH12A-10S-0.5SH(55) from Hirose Electric is a 10-position, 0.5mm pitch FFC/FPC connector featuring a top-contact, right-angle surface-mount design. The connector supports FFC and FPC cable types with a thickness of 0.30mm and includes a zero insertion force (ZIF) flip lock actuator for easy cable insertion and retention.
The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. The housing is made of polyamide (nylon) with a UL94 V-0 flammability rating, and the actuator is made of polyphenylene sulfide (PPS). Contacts are phosphor bronze with a gold finish. Termination is via solder, and the height above board is 2.00mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.93 | $0.93 |
| 100+ | $0.88 | $0.88 |
| 250+ | $0.83 | $0.83 |
| 500+ | $0.81 | $0.81 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.77 | $0.77 |
| 4,000+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
Yes, it features a zero insertion force (ZIF) flip lock.
-40°C to 85°C.
