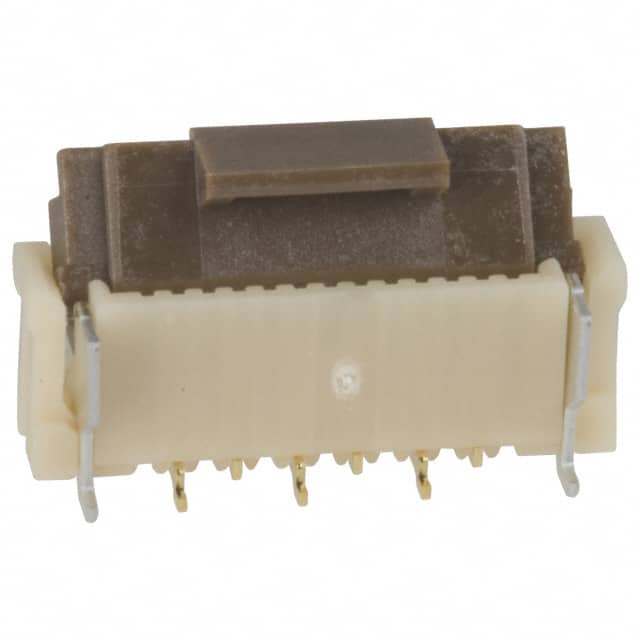

The FH12-6S-1SV(55) is a 6-position, 1.00mm pitch FFC/FPC connector from Hirose Electric's FH12 series. It features a rotating one-touch ZIF (Zero Insertion Force) mechanism that provides easy mating with a clear tactile click. The connector supports high-density mounting with its compact design, suitable for center PCB placement.
Electrical specifications include a current rating of 0.5A DC (derate to 70% when all contacts are energized) and a voltage rating of 50V AC. Contact resistance is 50 mΩ maximum, insulation resistance is 500 MΩ minimum, and withstanding voltage is 150V AC for 1 minute without flashover or breakdown. The connector operates over a temperature range of -40°C to +85°C.
Mechanically, the connector is surface mount with solder termination. It uses a vertical orientation (contacts, vertical - 1 sided) and accepts FFC/FPC cables with a thickness of 0.30mm. The housing is made of polyamide (PA) nylon with UL94 V-0 flammability rating, and the actuator is polyphenylene sulfide (PPS). Contacts are gold-plated phosphor bronze. The height above board is 0.142" (3.60mm). The connector is RoHS3 compliant (unverified), MSL 1 unlimited, and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions.
The pitch is 1.00mm.
The current rating is 0.5A DC. When all contacts are energized, derate to 70% of the rating.
The voltage rating is 50V AC.
It is surface mount with solder termination.
The operating temperature range is -40°C to +85°C.
The housing material has a UL94 V-0 flammability rating.
