| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

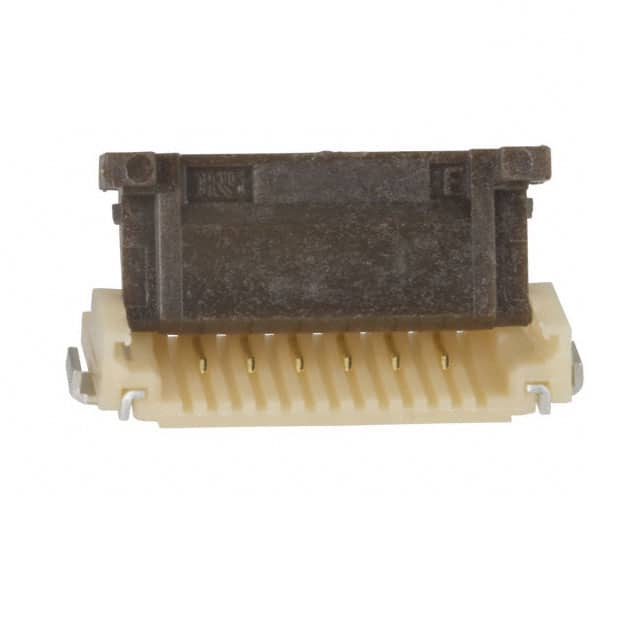

The Hirose FH12-6S-1SH(1)(98) is a 6-position FFC/FPC connector from the FH12 series, featuring a 1.00mm pitch and bottom contact design. It is configured for right angle surface mount termination with solder pads, making it suitable for compact PCB layouts where space is constrained.
The connector supports FFC and FPC cables with a straight cable end type and a thickness of 0.30mm. It includes a flip lock actuator for secure cable retention and a zero insertion force (ZIF) mechanism that simplifies assembly and reduces wear on the cable contacts. The housing is made of polyamide (PA) nylon with a UL94 V-0 flammability rating, and the actuator is constructed from polyphenylene sulfide (PPS). Contacts are phosphor bronze with gold finish, ensuring reliable electrical performance.
Rated for 50V and an operating temperature range of -40°C to 85°C, this connector is designed for general-purpose signal interconnection in a variety of electronic devices. Solder retention features help maintain mechanical stability during reflow soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.10 | $1.10 |
| 25+ | $0.98 | $0.98 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.93 | $0.93 |
| 500+ | $0.88 | $0.88 |
| 1,000+ | $0.86 | $0.86 |
| 2,500+ | $0.81 | $0.81 |
| 5,000+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 6 positions.
The pitch is 1.00mm.
The voltage rating is 50V.
It uses surface mount, right angle mounting.
