| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Failure Rate | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Voltage |

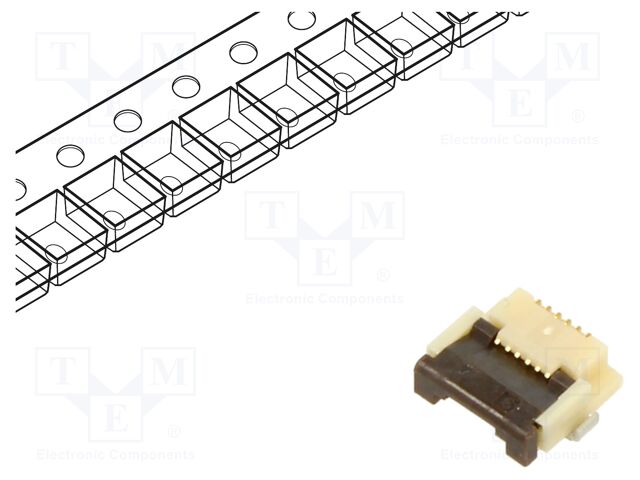

The HIROSE FH12-6S-0.5SH(55) is a surface-mount (SMT) connector designed for FFC/FPC (Flat Flexible Cable/Printed Circuit) applications. It belongs to the FH12 series and offers 6 positions with a 0.5mm pitch, making it suitable for compact electronic designs.
This connector is rated for a voltage of 50V and a current of 0.5A. The contact plating is gold-plated, ensuring reliable electrical connections. The body material is polyamide, and the contact material is phosphor bronze. It operates within a temperature range of -40°C to 85°C and has a flammability rating of UL94V-0.
The FH12-6S-0.5SH(55) features a horizontal spatial orientation and a FlipLock locking system for secure cable attachment. It is designed with bottom contacts and a ZIF (Zero Insertion Force) mechanism. This connector is ideal for applications requiring space-saving and reliable interconnections between flexible circuits and PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FH12-6S-0.5SH(55) is an FFC/FPC connector.
The FH12-6S-0.5SH(55) connector has 6 positions.
The pitch of the FH12-6S-0.5SH(55) connector is 0.5mm.
The current rating for the FH12-6S-0.5SH(55) connector is 0.5A.
The voltage rating of the FH12-6S-0.5SH(55) connector is 50V.
The operating temperature range for the FH12-6S-0.5SH(55) connector is -40°C to 85°C.
The mounting type of the FH12-6S-0.5SH(55) connector is SMT.
