| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
580 pcs
|
580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

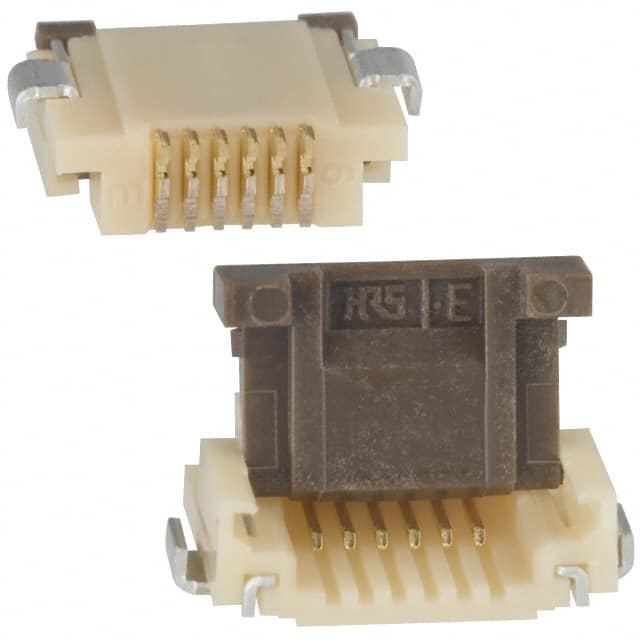

The FH12-6S-0.5SH(55) is a 6-position FFC/FPC connector from Hirose Electric with a 0.5mm pitch. It features a surface mount, right-angle mounting style with bottom contacts and a zero insertion force (ZIF) flip lock actuator for secure cable retention. The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. Contacts are made of phosphor bronze with gold plating, ensuring reliable electrical performance. The housing is constructed from polyamide (nylon) with a UL94 V-0 flammability rating, and the actuator is made from polyphenylene sulfide (PPS). This connector accepts FFC/FPC cables with a thickness of 0.30mm and straight cable end type. It is suitable for high-density PCB designs in consumer electronics, portable devices, and display interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.18 | $1.18 |
| 250+ | $1.13 | $1.13 |
| 500+ | $1.07 | $1.07 |
| 1,000+ | $1.03 | $1.03 |
| 2,000+ | $1.00 | $1.00 |
| 4,000+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions.
The pitch is 0.50mm (0.020").
The voltage rating is 50V.
It uses surface mount, right-angle mounting.
The operating temperature range is -40°C to 85°C.
Yes, it features a flip lock actuator for secure cable retention.
It supports FFC/FPC cables with a thickness of 0.30mm.
