| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,366 pcs
|
11366 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11,366 pcs
|
11366 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

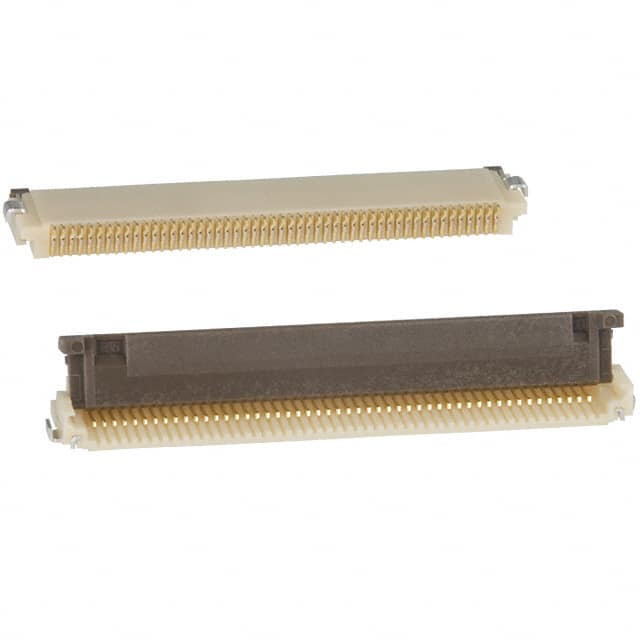

The FH12-50S-0.5SH(55) is a 50-position, 0.5mm pitch FFC/FPC connector from Hirose Electric. It features bottom contacts for flexible flat cable connections, with a right angle surface mount design that saves board space. The connector uses a zero insertion force (ZIF) flip lock actuator for easy cable insertion and secure retention.
Electrical rating is 50V, and the operating temperature range is -40°C to 85°C, suitable for a wide variety of environments. Contacts are gold-plated phosphor bronze, ensuring reliable conductivity. The housing is made of polyamide (nylon) with UL94 V-0 flammability rating, and the actuator is polyphenylene sulfide (PPS).
Mounting is surface mount right angle, with solder termination. The connector height above board is 2.00mm. It accepts FFC/FPC cables with a thickness of 0.30mm. The straight cable end type and bottom contact design make it suitable for applications requiring a low-profile, reliable interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.27 | $3.27 |
| 10+ | $2.78 | $2.78 |
| 25+ | $2.48 | $2.48 |
| 100+ | $2.36 | $2.36 |
| 250+ | $2.33 | $2.33 |
| 2,000+ | $2.33 | $2.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 50 positions.
The pitch is 0.50mm (0.020").
The voltage rating is 50V.
It is surface mount, right angle.
-40°C to 85°C.
Gold.
UL94 V-0.
