| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
890 pcs
|
890 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

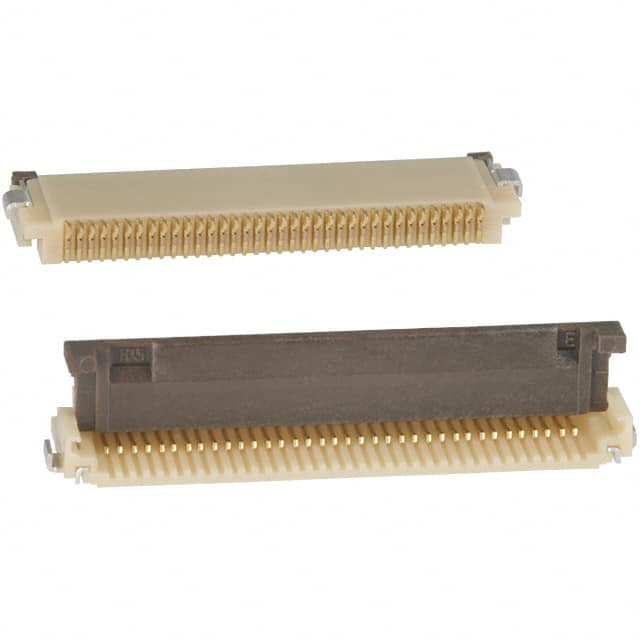

The FH12-36S-0.5SH(55) is a 36-position FFC/FPC connector from Hirose Electric, part of the FH12 series. It features a 0.5mm pitch and surface mount right angle termination, making it suitable for compact designs where board space is limited. The connector employs a zero insertion force (ZIF) mechanism with a flip lock actuator, which simplifies cable insertion and ensures reliable contact retention.
Electrical specifications include a voltage rating of 50V and an operating temperature range of -40°C to 85°C. The contacts are made of phosphor bronze with gold plating, providing low contact resistance and corrosion resistance. The housing is polyamide (PA) nylon with a UL94 V-0 flammability rating, and the actuator is made of polyphenylene sulfide (PPS).
The connector supports FFC/FPC cables with a thickness of 0.30mm and has a height above board of 2.00mm. It is designed for bottom contact style and straight cable end type. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 10+ | $2.03 | $2.03 |
| 25+ | $1.82 | $1.82 |
| 100+ | $1.73 | $1.73 |
| 250+ | $1.62 | $1.62 |
| 500+ | $1.56 | $1.56 |
| 1,000+ | $1.55 | $1.55 |
| 2,000+ | $1.55 | $1.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions.
0.5mm.
50V.
Surface mount, right angle.
Yes, it features Zero Insertion Force (ZIF) with a flip lock actuator.
-40°C to 85°C.
0.30mm.
