| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

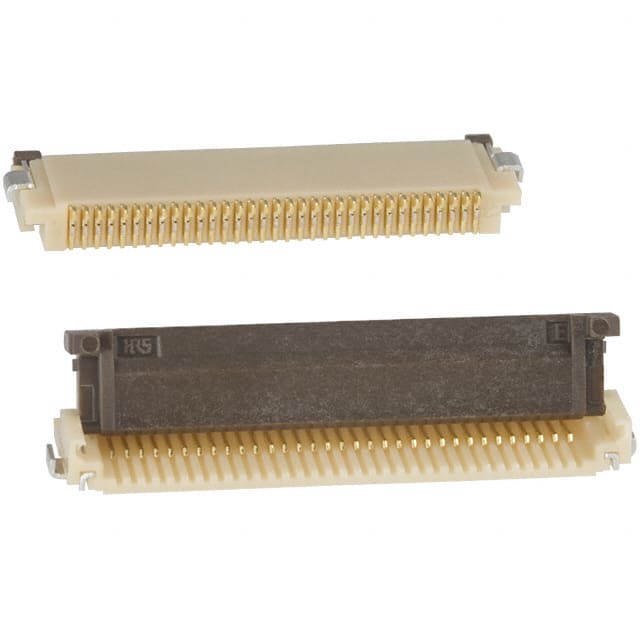

The FH12-33S-0.5SH(55) from Hirose Electric is a 33-position, 0.5mm pitch FFC/FPC connector designed for right angle surface mount applications. It features a bottom contact configuration and a zero insertion force (ZIF) flip lock actuator for secure cable retention. The connector supports FFC/FPC cables with a thickness of 0.30mm.
This connector is rated for 50V operation and operates over a temperature range of -40°C to 85°C, making it suitable for a wide range of environments. The housing is made of polyamide (PA) nylon with a UL94 V-0 flammability rating, and the actuator is constructed from polyphenylene sulfide (PPS). Contacts are phosphor bronze with a gold finish for reliable conductivity.
The right angle surface mount design allows for low-profile mounting with a height above board of 0.079" (2.00mm). The flip lock mechanism simplifies cable insertion and removal while ensuring a stable connection. This connector is ideal for compact electronic devices requiring flexible cable interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.33 | $2.33 |
| 10+ | $1.91 | $1.91 |
| 25+ | $1.69 | $1.69 |
| 100+ | $1.65 | $1.65 |
| 250+ | $1.61 | $1.61 |
| 500+ | $1.57 | $1.57 |
| 1,000+ | $1.55 | $1.55 |
| 2,000+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33 positions.
0.5mm.
50V.
Surface Mount, Right Angle.
-40°C to 85°C.
Yes, it features Zero Insertion Force (ZIF) with a flip lock actuator.
Gold.
