| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

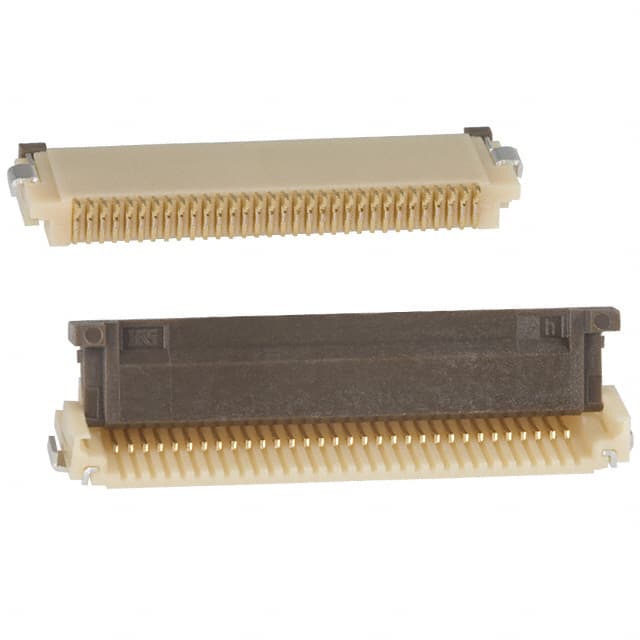

The FH12-32S-0.5SH(55) is a 32-position FFC/FPC connector from Hirose Electric's FH12 series. It features a 0.5mm pitch, right angle orientation, and surface mount termination for compact PCB designs. The connector uses gold-plated phosphor bronze contacts to ensure reliable signal integrity. The housing is made of polyamide (nylon) with a polyphenylene sulfide (PPS) actuator, providing durability and insulation. It includes a flip lock locking feature for secure cable retention and supports zero insertion force (ZIF) for easy cable insertion. The cable end type is straight, and the FFC/FPC thickness is 0.30mm. The height above board is 2.00mm. It is rated for 50V and operates from -40°C to 85°C, with a UL94 V-0 flammability rating. This connector is suitable for high-density interconnections in consumer electronics, automotive, and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.70 | $1.70 |
| 100+ | $1.62 | $1.62 |
| 250+ | $1.52 | $1.52 |
| 500+ | $1.51 | $1.51 |
| 1,000+ | $1.49 | $1.49 |
| 2,000+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions.
0.50mm.
50V.
Surface Mount, Right Angle.
-40°C to 85°C.
Yes, it features a flip lock.
Gold.
