| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,000 pcs
|
14000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,312 pcs
|
1312 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

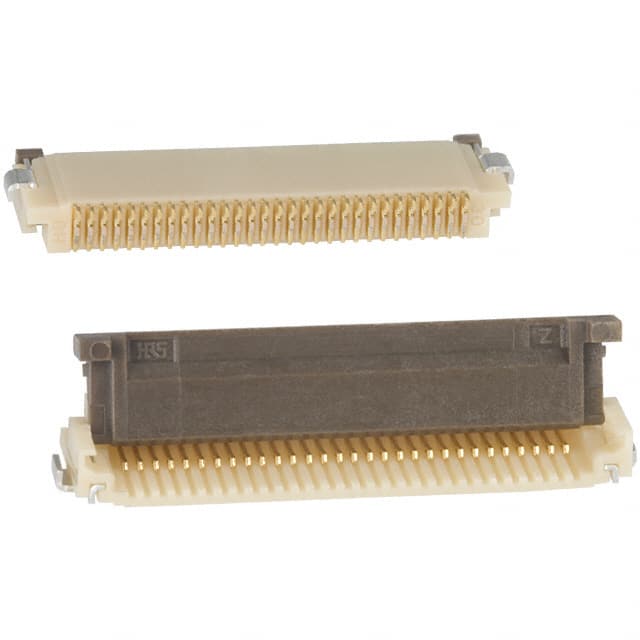

The Hirose FH12-30S-0.5SH(55) is a 30-position, 0.5mm pitch FFC/FPC connector designed for space-constrained applications. It features a zero insertion force (ZIF) flip lock actuator that ensures secure cable retention and easy mating. The connector is surface mount with a right-angle orientation, making it ideal for low-profile designs.
Constructed with a polyamide (nylon) housing and a polyphenylene sulfide (PPS) actuator, this connector offers a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with gold finish, providing reliable conductivity and corrosion resistance. The operating temperature range spans -40°C to 85°C, and the voltage rating is 50V.
This connector accepts 0.30mm thick FFC/FPC cables with straight end type. The bottom contact configuration simplifies routing in compact PCB layouts. Its small footprint and ZIF mechanism make it suitable for consumer electronics, medical devices, and industrial control systems where reliable interconnections are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 10+ | $1.79 | $1.79 |
| 25+ | $1.60 | $1.60 |
| 100+ | $1.53 | $1.53 |
| 250+ | $1.43 | $1.43 |
| 500+ | $1.38 | $1.38 |
| 1,000+ | $1.36 | $1.36 |
| 2,000+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 30 positions.
The pitch is 0.5mm.
It is surface mount with a right-angle orientation.
The voltage rating is 50V.
The operating temperature range is -40°C to 85°C.
Yes, it features a zero insertion force (ZIF) flip lock actuator.
The contact finish is gold.
