| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

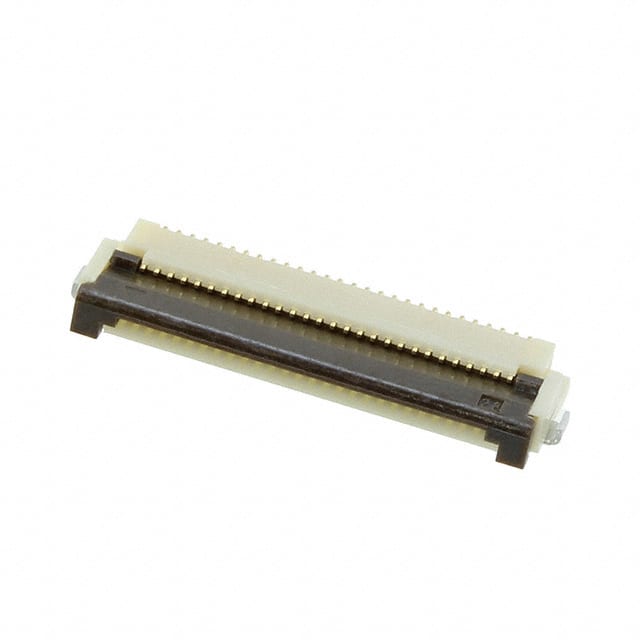

The FH12-28S-0.5SH(55) is a 28-position FFC/FPC connector from Hirose Electric's FH12 series. It features a 0.5mm pitch and right-angle surface mount termination with solder. The connector uses bottom contacts made of gold-plated phosphor bronze for reliable signal integrity. The ZIF (Zero Insertion Force) flip lock actuator simplifies cable insertion and secures the connection without damaging the flexible circuit. The housing is molded from polyamide (nylon) and the actuator from polyphenylene sulfide (PPS), both meeting UL94 V-0 flammability rating. Electrical ratings include 50V and an operating temperature range of -40°C to 85°C. This connector is designed for compact, space-constrained applications requiring a low-profile, right-angle interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 10+ | $1.68 | $1.68 |
| 25+ | $1.46 | $1.46 |
| 100+ | $1.37 | $1.37 |
| 250+ | $1.36 | $1.36 |
| 500+ | $1.30 | $1.30 |
| 1,000+ | $1.27 | $1.27 |
| 2,000+ | $1.26 | $1.26 |
| 4,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 28 positions.
The pitch is 0.50mm (0.020 inches).
The voltage rating is 50V.
The connector is surface mount with a right-angle orientation.
The operating temperature range is -40°C to 85°C.
Yes, it features a flip lock Zero Insertion Force (ZIF) actuator.
Contacts are made of phosphor bronze with a gold finish.
