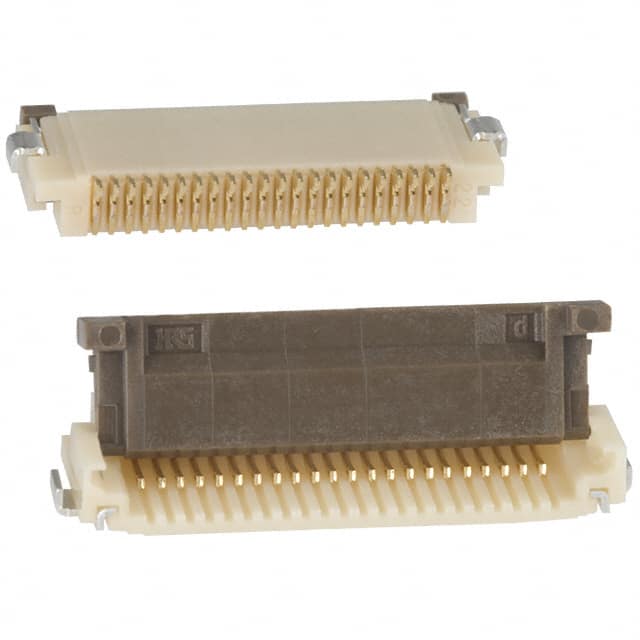

The FH12-22S-0.5SH(55) is a 22-position FFC/FPC connector from Hirose Electric, part of the FH12 series. It features a 0.5mm pitch and a right-angle surface mount design with bottom contacts. The connector utilizes a flip lock actuator for secure cable retention and a zero insertion force (ZIF) mechanism for easy insertion.
The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. Contacts are gold-plated phosphor bronze, and the housing is made of polyamide (PA) nylon with a UL94 V-0 flammability rating. The actuator is constructed from polyphenylene sulfide (PPS). The connector supports FFC/FPC cables with a thickness of 0.3mm.
This connector is suitable for a wide range of applications requiring compact, high-density interconnections, such as consumer electronics, automotive systems, and industrial equipment. Its right-angle orientation allows for low-profile mounting, making it ideal for space-constrained PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
| 10+ | $1.56 | $1.56 |
| 25+ | $1.39 | $1.39 |
| 100+ | $1.35 | $1.35 |
| 250+ | $1.32 | $1.32 |
| 2,000+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions.
0.5mm.
50V.
Surface Mount, Right Angle.
Bottom Contacts.
Flip Lock.
-40°C to 85°C.
