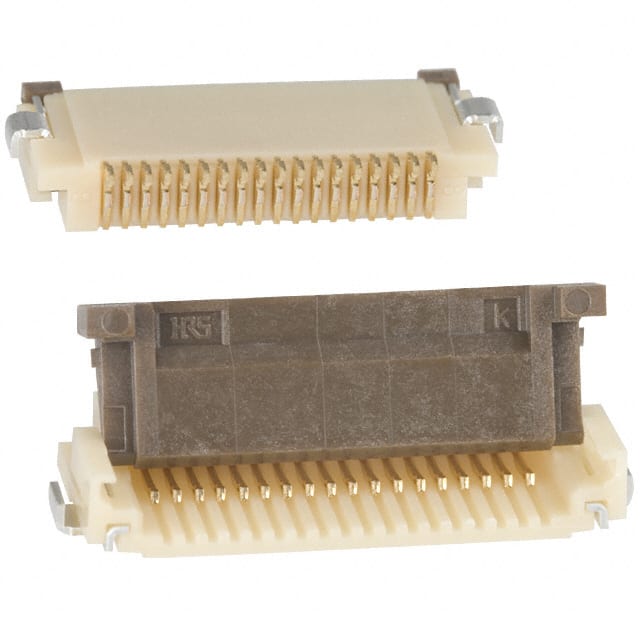

The Hirose FH12-18S-0.5SH(55) is an 18 position FFC/FPC connector from the FH12 series, featuring a 0.5mm pitch and bottom contact design. It is surface mounted with a right angle orientation, making it suitable for compact, space-constrained PCB layouts. The connector uses a flip lock actuator for secure cable retention and requires a board height of only 2.00mm.
Electrical ratings include a current rating of 0.4A DC and a voltage rating of 50V AC. The operating temperature range is -40°C to +70°C, with a storage temperature range of -10°C to +50°C. The housing is made of UL94 V-0 rated polyamide (nylon), and the actuator is polyphenylene sulfide (PPS). Contacts are phosphor bronze with gold plating.
This connector is designed for use with FFC or FPC cables having a thickness of 0.3mm ±0.05mm. It features a zero insertion force (ZIF) mechanism, simplifying assembly and reducing wear on the cable. Typical applications include interconnecting main circuit boards with LCDs, HDDs, and other peripherals in compact electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.69 | $1.69 |
| 10+ | $1.44 | $1.44 |
| 25+ | $1.28 | $1.28 |
| 100+ | $1.24 | $1.24 |
| 250+ | $1.22 | $1.22 |
| 500+ | $1.20 | $1.20 |
| 2,000+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50 mm.
It has 18 positions.
The current rating is 0.4 A DC.
The voltage rating is 50 V AC.
It uses surface mount, right angle mounting.
