Mfr Part #:

FH12-16S-1SH

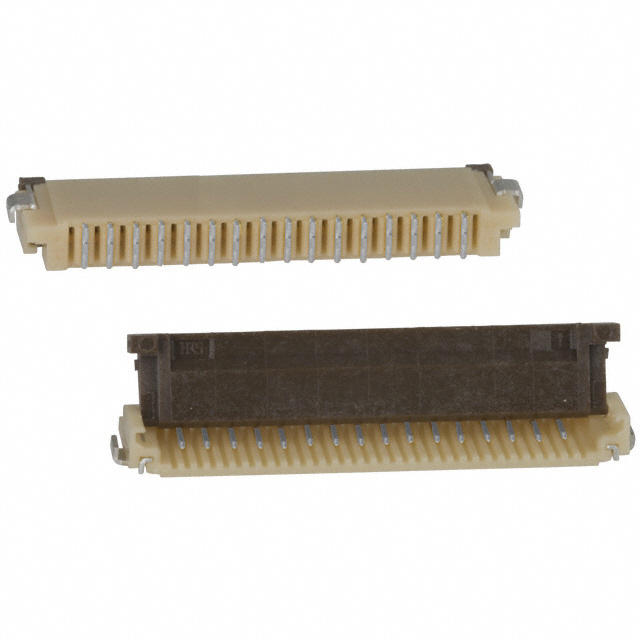

FFC/FPC connector with 16 positions, 1mm pitch, right angle surface mount, bottom contact, and zero insertion force (ZIF) flip lock. Rated for 0.5A DC and 50V AC.

✓ Total Stock: 1,900 pcs

$ Price Range: $0.62

FH12-16S-1SH Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	1,900 pcs On Request	1900 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FH12-16S-1SH Description

Short technical summary and product information.

Hirose Electric FH12-16S-1SH is a 1mm pitch FFC/FPC connector from the FH12 series. It features 16 positions with bottom contact configuration, surface mount right angle orientation, and a zero insertion force (ZIF) flip lock mechanism that provides a clear tactile click. The connector is rated for 0.5A DC (derate to 70% when all contacts used) and 50V AC. It has a contact resistance of 50mΩ max, insulation resistance 500MΩ min, and withstanding voltage of 150V AC for 1 minute. Operating temperature range is -40°C to 85°C. The housing is made of polyamide (nylon) with UL94V-0 flammability rating, actuator is PPS, contacts are phosphor bronze with gold finish. It accommodates FPC/FFC thickness of 0.30mm with straight cable end. The connector includes solder retention features for reliable mounting. Suitable for various electronic applications requiring compact, reliable FFC/FPC connections.

FH12-16S-1SH Quick Information

Product Type: FFC/FPC Connector

Series: FH12

Canonical Name: Hirose Electric FH12 Series FFC/FPC Connector, 16 Positions, Bottom Contact, 1mm Pitch, Right Angle, SMD

Subcategory: Bottom Contact, Right Angle

FH12-16S-1SH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

FH12-16S-1SH Estimated Pricing

Qty	Low	High
2,000+	$0.62	$0.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

FH12-16S-1SH Features

16 positions with 1mm pitch.
Zero insertion force flip lock mechanism.
Right angle surface mount design.
Bottom contact configuration.
Gold plated phosphor bronze contacts.

FH12-16S-1SH Applications

Used in consumer electronics and LCD connections.
Ideal for compact portable device designs.
Suitable for automotive interior control modules.
Common in industrial sensor interfaces.

FH12-16S-1SH FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FH12-16S-1SH have?

16 positions.

What is the pitch of the FH12-16S-1SH?

1.00mm (0.039")

What is the current rating?

0.5A DC per contact, derate to 70% when all contacts are used.

What is the voltage rating?

50V AC.

What is the mounting type?

Surface mount, right angle.

What is the locking feature?

Flip lock, zero insertion force (ZIF).

What is the operating temperature range?

-40°C to 85°C.

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Hirose Electric
Actuator Material	Polyphenylene Sulfide (PPS)
Cable End Type	Straight
Connector	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Resistance	50mΩ max
Current Rating	0.5A DC
Durability	20 cycles
FFC, FCB Thickness	0.30mm
Features	Solder Retention, Zero Insertion Force (ZIF)
Flat Flex Type	FFC, FPC
Height Above Board	0.079" (2.00mm)
Housing Material	Polyamide (PA), Nylon
Insulation Resistance	500MΩ min
Lead Spacing	1.0 mm
Lead Style	Solder
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Operating Temperature	-40°C ~ 85°C
Pitch	1.00mm (0.039")
Termination	Solder
Voltage Rating	50V AC
Withstanding Voltage	150V AC/1 min
