| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,650 pcs
|
1650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,650 pcs
|
1650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

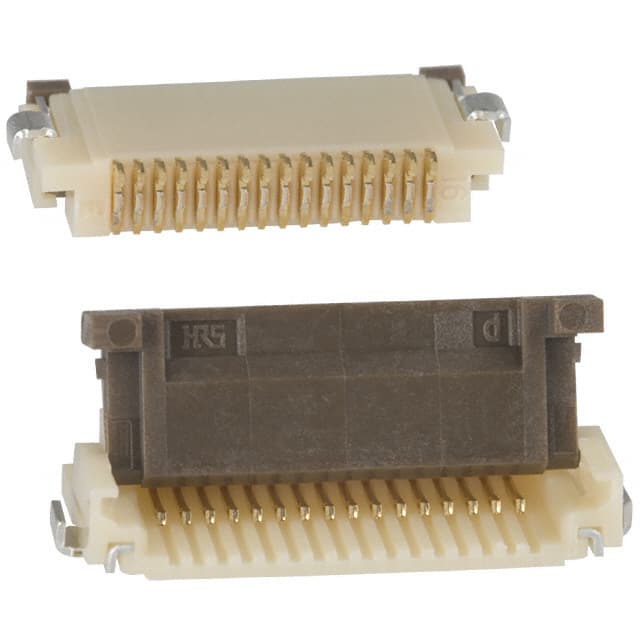

The FH12-16S-0.5SH(55) is a 16-position FFC/FPC connector from Hirose Electric, featuring a 0.5mm pitch and surface mount right-angle mounting. It utilizes a zero insertion force (ZIF) flip lock mechanism for easy cable insertion and secure retention. The connector has bottom contacts and accepts 0.30mm thick FFC/FPC cables with straight end type. Contacts are gold-plated phosphor bronze, and the housing is made of polyamide (nylon) with a polyphenylene sulfide (PPS) actuator. The operating temperature range is -40°C to 85°C, and the material flammability rating is UL94 V-0. This connector is suitable for applications requiring compact, reliable interconnections in consumer electronics, automotive, and industrial equipment. The package is surface mount, right angle, with solder termination. The height above board is 2.00mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.62 | $1.62 |
| 10+ | $1.38 | $1.38 |
| 25+ | $1.23 | $1.23 |
| 100+ | $1.17 | $1.17 |
| 250+ | $1.10 | $1.10 |
| 500+ | $1.07 | $1.07 |
| 1,000+ | $1.05 | $1.05 |
| 2,000+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
Yes, it features a flip lock mechanism.
-40°C to 85°C.
Gold.
