| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

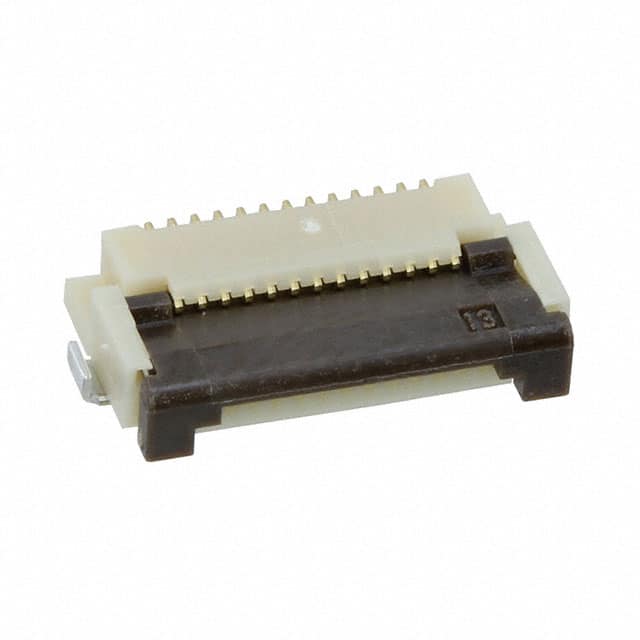

The FH12-13S-0.5SH(55) is a 13-position FFC/FPC connector from Hirose Electric's FH12 series. It features a 0.5mm pitch and is designed for surface mount right-angle mounting, making it suitable for compact electronic assemblies. The connector uses a flip lock actuator for secure cable retention and employs gold-plated phosphor bronze contacts for reliable signal transmission. The housing is made of polyamide (nylon) with UL94 V-0 flammability rating, and the actuator is PPS. The operating temperature range is -40°C to 85°C. It is rated for 50V and supports FFC/FPC cables with a thickness of 0.30mm. This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.64 | $1.64 |
| 10+ | $1.42 | $1.42 |
| 25+ | $1.27 | $1.27 |
| 100+ | $1.21 | $1.21 |
| 250+ | $1.13 | $1.13 |
| 500+ | $1.07 | $1.07 |
| 1,000+ | $0.94 | $0.94 |
| 2,000+ | $0.88 | $0.88 |
| 4,000+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13 positions.
0.5mm
50V
Surface mount, right angle
-40°C to 85°C
Gold
Yes, flip lock
