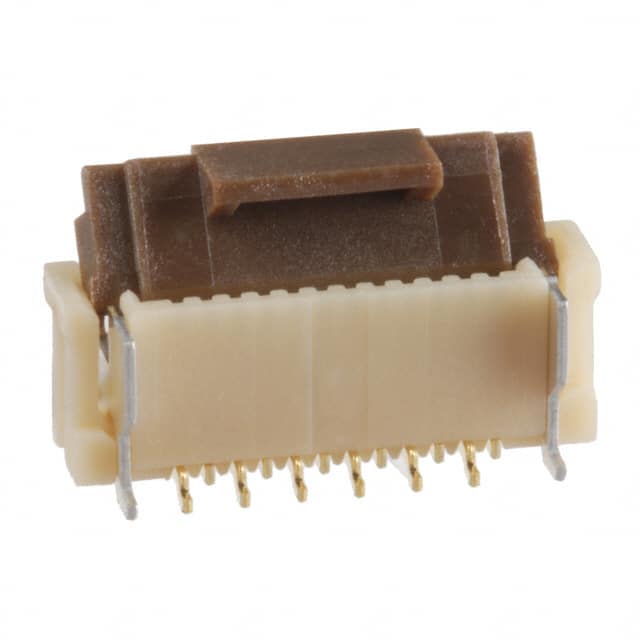

FH12-12S-0.5SVA(54)

The Hirose FH12-12S-0.5SVA(54) is a flat flexible connector assembly designed for FFC and FPC cables. This connector offers 12 positions with a 0.5mm pitch, making it suitable for compact electronic designs. The surface-mount package allows for automated assembly, and the vertical contact orientation with one-sided contacts simplifies cable routing. The connector features a flip lock mechanism for secure cable retention and zero insertion force (ZIF) operation, reducing wear on the cable contacts. The contacts are made of phosphor bronze with a gold finish, ensuring reliable conductivity and corrosion resistance. The housing is constructed from polyamide (nylon) with a UL94 V-0 flammability rating, and the actuator is made of polyphenylene sulfide (PPS). The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. Solder retention features help maintain alignment during soldering. This connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).

This connector is commonly used in consumer electronics, industrial control systems, and automotive applications where space is limited and reliable interconnections are required. The 0.5mm pitch allows for high-density wiring, while the ZIF design facilitates easy cable insertion and removal without damaging the contacts.
