| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

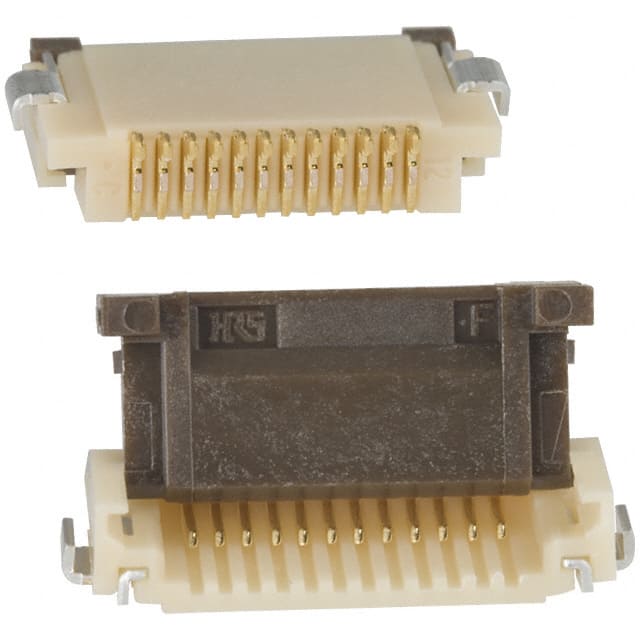

The FH12-12S-0.5SH(55) from Hirose Electric is a 12-position FFC/FPC connector with a 0.50mm pitch, designed for surface mount right-angle mounting. It features a Zero Insertion Force (ZIF) flip lock actuator for secure cable retention. The connector accepts straight FFC/FPC cables with a thickness of 0.30mm and uses bottom contacts with gold-plated phosphor bronze terminals for reliable electrical performance. The housing is made of polyamide (PA) with a UL94 V-0 flammability rating, and the actuator is polyphenylene sulfide (PPS).
With a voltage rating of 50V and an operating temperature range of -40°C to 85°C, this connector is suitable for a wide range of applications. The height above board is only 2.00mm, making it ideal for space-constrained designs. The contacts are gold-plated, ensuring low contact resistance and corrosion resistance.
Typical applications include consumer electronics, mobile devices, display interfaces, and automotive interior systems where high-density, reliable interconnections are required. The lock feature provides a secure connection even in vibration-prone environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.13 | $1.13 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.05 | $1.05 |
| 500+ | $1.01 | $1.01 |
| 1,000+ | $1.00 | $1.00 |
| 2,000+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-40°C to 85°C.
Flip lock (ZIF).
Gold.
