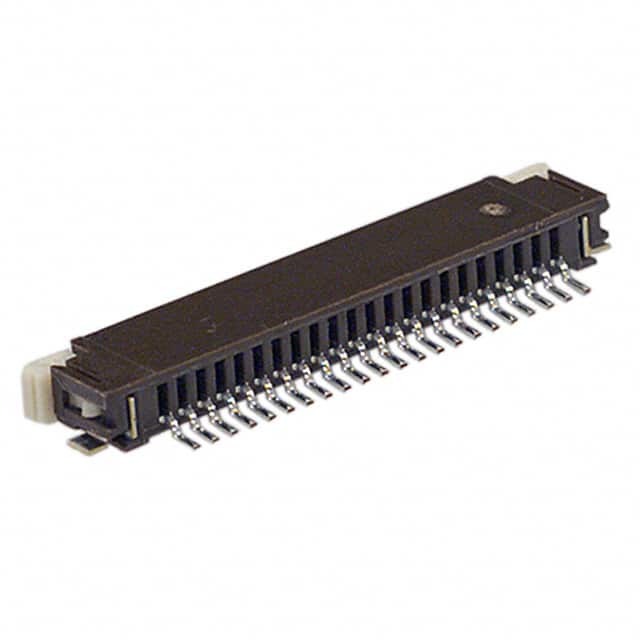

The Hirose FH10A-22S-1SH is a 22-position, 1.00mm pitch FFC/FPC connector featuring a Zero Insertion Force (ZIF) mechanism with slide lock. It is designed for surface mount, right angle mounting, and is suitable for automated assembly via tape and reel packaging. The connector supports FFC and FPC cables with a thickness of 0.30mm.
Electrical ratings include a rated voltage of 50V AC and a rated current of 0.5A. Contact resistance is 25mΩ maximum, insulation resistance is 500MΩ minimum at 100V DC, and the connector withstands 500V AC for 1 minute. The operating temperature range is -55°C to +85°C, with a storage temperature range of -10°C to +60°C.
The connector is constructed with a phosphor bronze contact material and solder plating finish, housed in a Polybutylene Terephthalate (PBT) insulator with a UL94 V-0 flammability rating. It is designed for high-density SMT applications, offering a height above board of 3.00mm. The ZIF mechanism ensures reliable connection while simplifying insertion and removal of the flex cable.
22 positions.
1.00mm.
0.5A.
50V.
Surface mount, right angle.
-55°C to +85°C.
Yes, Zero Insertion Force (ZIF) with slide lock.
