FGY75N60SMD The FGY75N60SMD is a 600V, 150A Field Stop IGBT from On Semiconductor. It features 750W power dissipation and a low saturation voltage of 2.5V.
Mfr Part #:

FGY75N60SMD

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FGY75N60SMD is a 600V, 150A Field Stop IGBT from On Semiconductor. It features 750W power dissipation and a low saturation voltage of 2.5V.
✓ Total Stock: 900 pcs
$ Price Range: $7.14

FGY75N60SMD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FGY75N60SMD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Gate Charge
IGBT Type
Input Type
Mounting Type
Operating Temperature
Power
Reverse Recovery Time (trr)
Supplier Device Package
Switching Energy
Td (on
Test Condition
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

FGY75N60SMD Description

Short technical summary and product information.

The FGY75N60SMD is a 600V, 150A Field Stop IGBT from On Semiconductor, designed for high-efficiency switching applications.



Electrical characteristics include a maximum collector-emitter voltage of 600V, continuous collector current of 150A, and power dissipation of 750W. The saturation voltage is 2.5V at 15V gate drive and 75A collector current. Gate charge is 248 nC. Switching performance: turn-on delay 24 ns, turn-off delay 136 ns, turn-on energy 2.3 mJ, turn-off energy 770 µJ. Reverse recovery time is 55 ns.

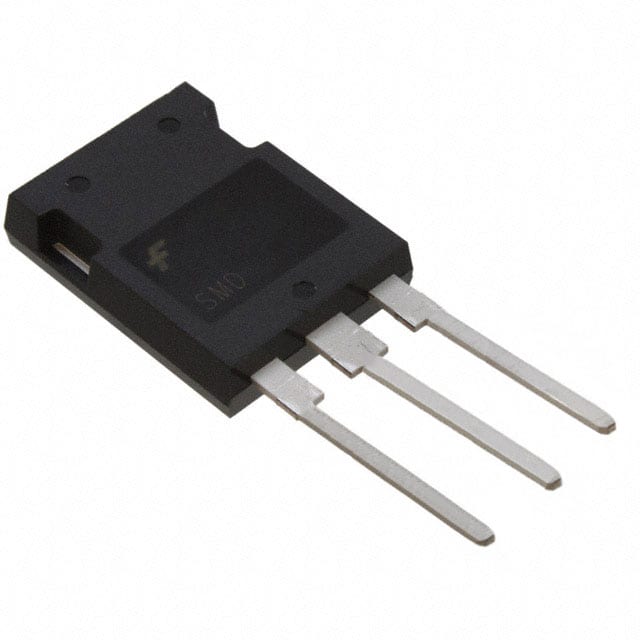

The device is housed in a through-hole TO-247-3 variant (PowerTO-247-3) package. Operating junction temperature range is -55°C to 175°C.



Typical applications include motor drives, inverters, power supplies, and other high-power switching circuits requiring low conduction and switching losses.

FGY75N60SMD Quick Information

Product Type: IGBT
Canonical Name: FGY75N60SMD
Subcategory: Single IGBT

FGY75N60SMD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FGY75N60SMD Estimated Pricing

Qty Low High
350+ $7.14 $7.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

FGY75N60SMD Features

  • 600V collector-emitter voltage rating.
  • 150A continuous collector current.
  • 750W power dissipation capability.
  • Low saturation voltage of 2.5V.
  • Field Stop technology for improved efficiency.

FGY75N60SMD Applications

  • Used in motor drive and inverter circuits.
  • Suitable for uninterruptible power supplies.
  • Ideal for high-power switching converters.
  • Applicable in induction heating systems.

FGY75N60SMD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the FGY75N60SMD?

600 V.

What package does the FGY75N60SMD come in?

TO-247-3 variant (PowerTO-247-3).

What is the operating temperature range of the FGY75N60SMD?

-55°C to 175°C (junction).

Is the FGY75N60SMD RoHS compliant?

RoHS3 compliant (unverified).

What is the continuous collector current rating?

150 A.

What is the gate charge of the FGY75N60SMD?

248 nC.

What is the turn-on switching energy (Eon)?

2.3 mJ at 400V, 75A, 3Ω, 15V.
