Mfr Part #:

FGN.2F.319.XLC

Mfr Name: Lemo

LEMO FGN.2F.319.XLC is a 19-position male circular connector plug with gold-plated crimp contacts, push-pull fastening, and IP67 protection. It accepts 26-22 AWG wire and operates from -15°C to 200°C.

✓ Total Stock: 1 pcs

$ Price Range: $153.86 - $169.81

FGN.2F.319.XLC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FGN.2F.319.XLC Description

Short technical summary and product information.

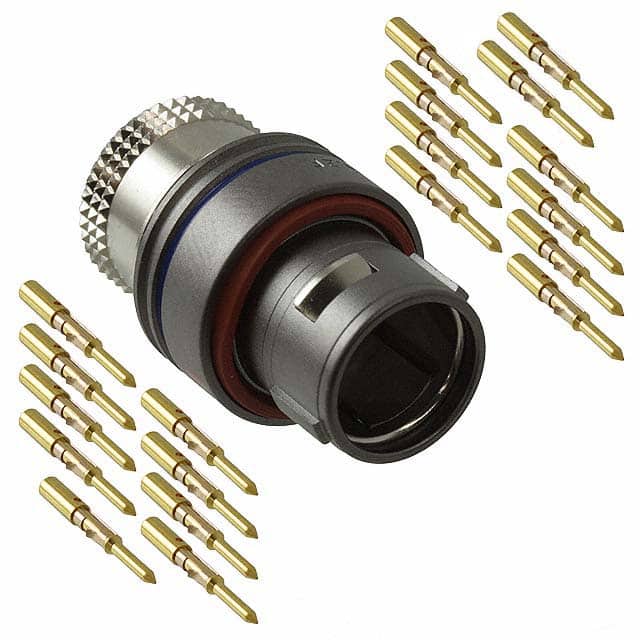

The LEMO FGN.2F.319.XLC is a rugged push-pull circular connector plug from the F series. It features 19 male pins with gold-plated contacts for reliable signal transmission. The connector is designed for free-hanging (in-line) mounting and uses crimp termination for secure wire connections.

This plug accommodates wire sizes from 26 to 22 AWG (0.14 to 0.34 mm²) and is rated for 5 A per contact. It offers a contact resistance of 6.1 mOhm maximum and withstands test voltages up to 2350 V DC between contact and shell. The insulator is made of PEEK with UL94 V-0 flammability rating.

The connector is IP67 rated for dust and water protection, operates from -15°C to 200°C, and withstands 100 g shock and 15 g vibration. It features a nickel-plated aluminum shell, push-pull locking, and a cable collet for cable fixation. The cable opening range is 5.30 to 14.00 mm.

With 1000 mating cycles and 48-hour salt spray corrosion resistance, this connector is suitable for demanding industrial, medical, and instrumentation applications requiring reliable connections in harsh environments.

FGN.2F.319.XLC Quick Information

Product Type: Circular Connector Plug

Series: F - Rugged Push-Pull

Canonical Name: LEMO FGN.2F.319.XLC Circular Connector Plug, Male Pins, 19 Positions, Crimp Termination, Push-Pull

Subcategory: Plug

FGN.2F.319.XLC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 95

REACH Status: REACH Unaffected

FGN.2F.319.XLC Estimated Pricing

Qty	Low	High
1+	$169.81	$169.81
10+	$153.86	$153.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

FGN.2F.319.XLC Features

19 gold-plated male crimp contacts.
Push-pull locking mechanism for secure mating.
IP67 rated for dust and water ingress.
Operates from -15°C to 200°C.
Accepts 26-22 AWG wire with 5.3-14 mm cable opening.

FGN.2F.319.XLC Applications

Ideal for industrial automation and control systems.
Suitable for medical equipment requiring reliable connections.
Used in harsh environment instrumentation.
Perfect for push-pull connector applications.

FGN.2F.319.XLC FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FGN.2F.319.XLC have?

19 positions.

What is the current rating of this connector?

5 A per contact.

What is the mounting type?

Free hanging (in-line).

What is the IP rating?

IP67.

What wire sizes does it accept?

26 to 22 AWG (0.14 to 0.34 mm²).

What is the operating temperature range?

-15°C to 200°C.

What is the contact finish?

Gold.

Category	Circular Connector Assemblies
Manufacturer Name	Lemo
Cable Opening	5.30 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish	Gold
Current Rating (Amps)	5 A
Failure Rate	F - Rugged Push-Pull
Fastening Type	Push-Pull
Gender	Male
Ingress Protection	IP67
Insulator Material	PEEK
Keying	3 keys
Material Flammability Rating	UL94 V-0
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature	-15 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size	319
Shielding	Shielded
Termination	Crimp
Termination Style	Crimp
Weight	13.15 g
