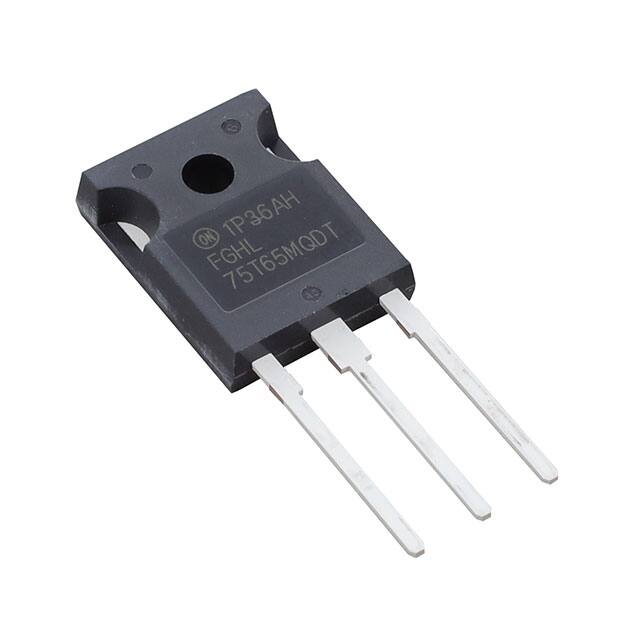

FGHL75T65MQDT The FGHL75T65MQDT is a 650V, 75A Field Stop Trench IGBT from On Semiconductor, packaged in a TO-247-3 through-hole case. It features low saturation voltage and is RoHS compliant.
Mfr Part #:

FGHL75T65MQDT

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FGHL75T65MQDT is a 650V, 75A Field Stop Trench IGBT from On Semiconductor, packaged in a TO-247-3 through-hole case. It features low saturation voltage and is RoHS compliant.
✓ Total Stock: 2,254 pcs
$ Price Range: $3.04 - $7.31

FGHL75T65MQDT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,804 pcs
On Request
1804 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FGHL75T65MQDT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Gate Charge
IGBT Type
Input Type
Mounting Type
Operating Temperature
Power
Reverse Recovery Time (trr)
Supplier Device Package
Switching Energy
Td (on
Test Condition
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

FGHL75T65MQDT Description

Short technical summary and product information.

The FGHL75T65MQDT is a Field Stop Trench IGBT from On Semiconductor, rated for a collector-to-emitter voltage of 650V and a continuous collector current of 75A at 100°C (80A at 25°C). It utilizes 4th generation mid-speed IGBT technology and is co-packed with a full-rated current diode.



Key electrical characteristics include a typical collector-emitter saturation voltage of 1.45V at 15V gate drive and 75A collector current, and a maximum junction temperature of 175°C. The device offers positive temperature coefficient for easy parallel operation and is designed for high current capability.



The FGHL75T65MQDT is housed in a TO-247-3 through-hole package, suitable for applications such as solar inverters, UPS, ESS, PFC, and converters. It is RoHS compliant and has an MSL rating of 1 (unlimited).

FGHL75T65MQDT Quick Information

Product Type: IGBT
Series: FGHL75T65MQDT
Canonical Name: FGHL75T65MQDT Field Stop Trench IGBT, 650V, 75A, TO-247-3
Subcategory: Single

FGHL75T65MQDT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FGHL75T65MQDT Estimated Pricing

Qty Low High
1+ $7.31 $7.31
10+ $4.95 $4.95
450+ $3.07 $3.07
900+ $3.04 $3.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

FGHL75T65MQDT Features

  • 650V collector-to-emitter voltage rating.
  • 75A continuous collector current at 100°C.
  • Low saturation voltage of 1.45V typical.
  • TO-247-3 through-hole package.
  • RoHS compliant and MSL 1 unlimited.

FGHL75T65MQDT Applications

  • Ideal for solar inverter designs.
  • Used in UPS and ESS systems.
  • Suitable for PFC and converter circuits.

FGHL75T65MQDT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum collector-to-emitter voltage of the FGHL75T65MQDT?

The maximum collector-to-emitter voltage (VCES) is 650V.

What is the continuous collector current rating at 100°C?

The continuous collector current (IC) is 75A at Tc=100°C.

What package is the FGHL75T65MQDT available in?

It is available in a TO-247-3 through-hole package.

What is the operating junction temperature range?

The operating junction temperature range is -55°C to +175°C.

Is the FGHL75T65MQDT RoHS compliant?

Yes, it is RoHS3 compliant.
