The FGH40T120SMD-F155 is a 1200V, 80A IGBT from On Semiconductor, utilizing advanced Trench Field Stop technology. This device is designed for hard-switching applications such as solar inverters, UPS systems, welders, and PFC circuits.
Key electrical specifications include a maximum collector-to-emitter voltage (Vces) of 1200V, a continuous collector current (Ic) of 80A at 25°C and 40A at 100°C, and a maximum power dissipation of 555W at 25°C. The typical saturation voltage (Vce(sat)) is 1.8V at 15V gate drive and 40A collector current, with a maximum of 2.4V. The device offers high-speed switching with a total gate charge of 370 nC.
The FGH40T120SMD-F155 is housed in a TO-247-3 through-hole package, suitable for robust mounting in power electronics assemblies. The operating junction temperature range is -55°C to 175°C. This device is Pb-Free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.99 | $9.99 |
| 30+ | $5.91 | $5.91 |
| 120+ | $5.01 | $5.01 |
| 510+ | $4.59 | $4.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-to-emitter voltage is 1200 V.
The maximum continuous collector current at Tc=25°C is 80 A.

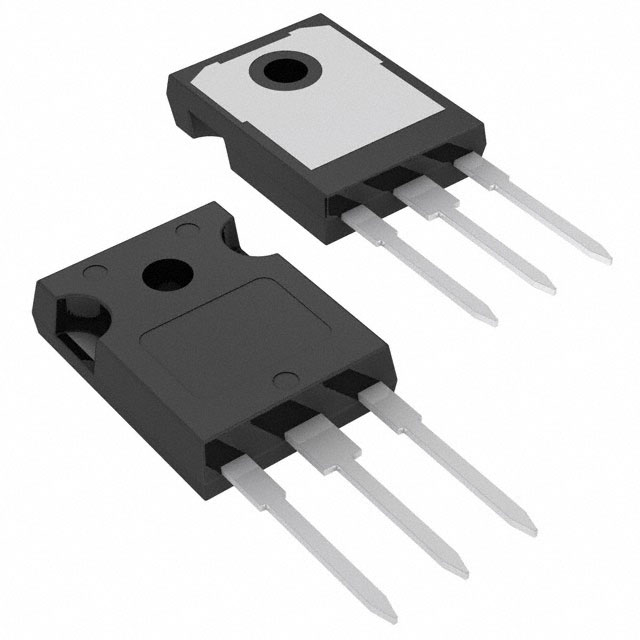

The device is housed in a TO-247-3 through-hole package.
The operating junction temperature range is -55°C to 175°C.
Yes, the device is RoHS3 compliant and Pb-Free.
The typical saturation voltage is 1.8 V at Vge=15V and Ic=40A.
The maximum power dissipation at Tc=25°C is 555 W.
