| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Weight |

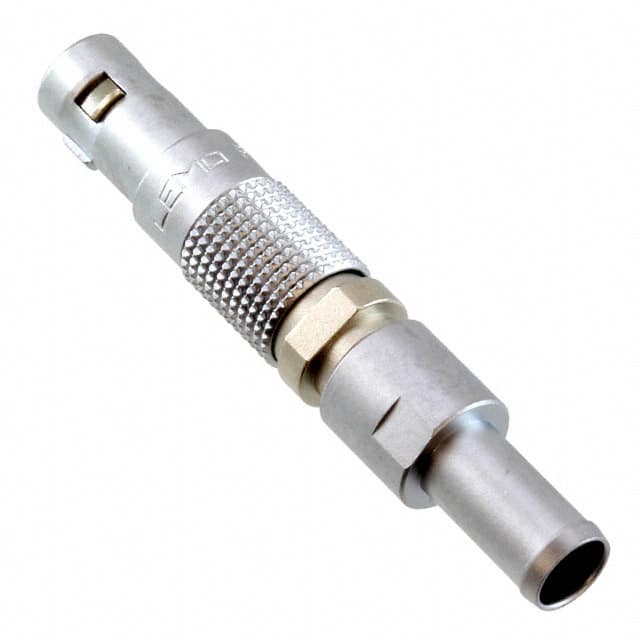

The LEMO FGG.00.302.CLAD35Z is a 2-position circular plug connector from the Series B indoor keyed family. It features male pins with gold contact finish for reliable signal integrity. The connector uses a solder cup termination and is designed for free hanging (in-line) mounting.
Mechanically, the connector has a chrome-plated brass shell with a push-pull fastening system and G keying orientation. It is shielded and includes a backshell. The cable opening accommodates jacket diameters from 2.80 mm to 3.50 mm, and the connector accepts wire sizes from 34 to 28 AWG.
Electrically, the connector is rated for 3.5 A current (per datasheet) and has a maximum contact resistance of 8.7 mOhm. It withstands test voltages of 1000 V AC (contact-contact) and 950 V AC (contact-shell). The operating temperature range is -55°C to 250°C.
The connector is RoHS3 compliant and REACH unaffected, with a UL94 V-0 flammability rating. It offers IP50 dust protection and is suitable for indoor applications requiring a compact, shielded circular interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $32.41 | $32.41 |
| 10+ | $27.54 | $27.54 |
| 25+ | $25.82 | $25.82 |
| 50+ | $24.59 | $24.59 |
| 100+ | $23.41 | $23.41 |
| 250+ | $21.95 | $21.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions.
The datasheet specifies a rated current of 3.5 A.
It is designed for free hanging (in-line) mounting.
The operating temperature range is -55°C to 250°C.
It accepts wire sizes from 34 to 28 AWG.
Yes, it is shielded with a minimum shielding effectiveness of 75 dB at 10 MHz and 40 dB at 1 GHz.
It has an IP50 rating, meaning it is dust protected.
