| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

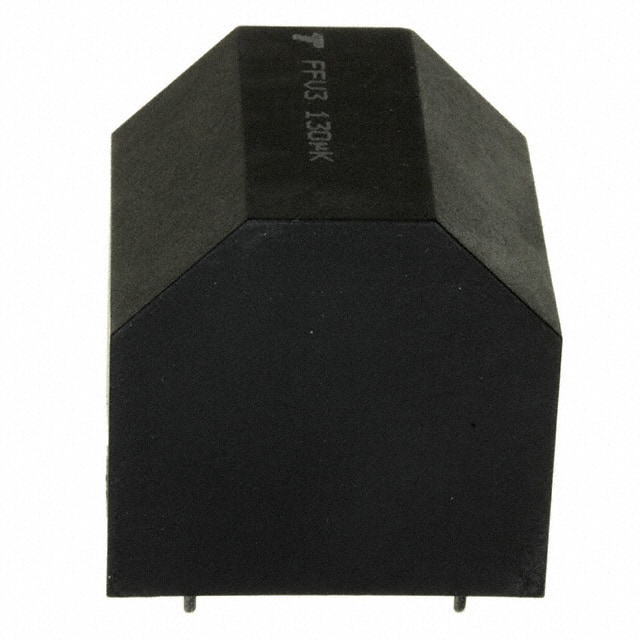

The Kyocera AVX FFV36J0256K-- is a metallized polypropylene film capacitor designed for general-purpose applications. It offers a capacitance of 25µF with a tolerance of ±10% and a voltage rating of 500VDC.
The capacitor operates within a temperature range of -40°C to 105°C. Its construction utilizes a metallized polypropylene dielectric material, known for its stability and low loss characteristics.
Mechanically, the component features a radial package with 4 leads and a lead spacing of 25mm. The dimensions are 40mm in height, 40mm in length, and 36mm in width. It is designed for through-hole mounting with PC pin terminations.
This general-purpose film capacitor is suitable for various electronic circuits requiring stable capacitance and voltage handling.
The capacitance is 25µF.
The tolerance is ±10%.
The voltage rating is 500VDC.
The operating temperature range is -40°C to 105°C.
It uses a Polypropylene (PP), Metallized dielectric material.
The lead spacing is 25mm.
It is a through-hole mounted component.
