Mfr Part #:

FFSD-25-D-03.00-01-N

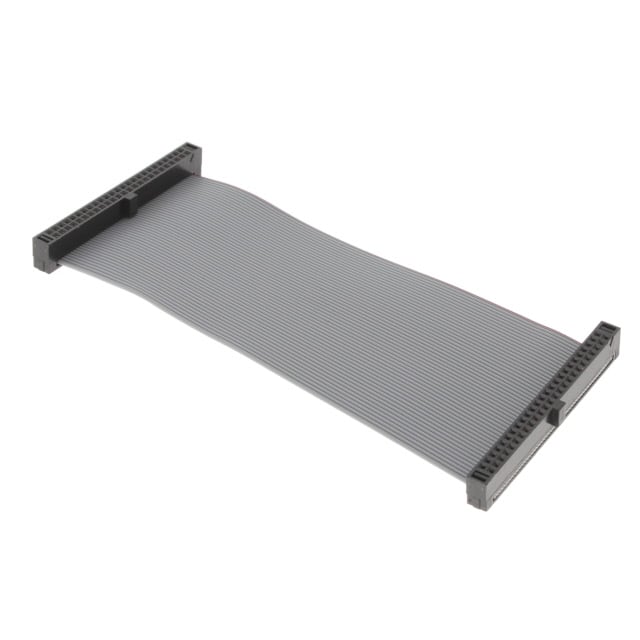

Samtec FFSD-25-D-03.00-01-N is a 50-position, 2-row, 1.27mm pitch socket to socket IDC cable assembly. It features gold-plated contacts, a 3.00 inch length, and is unshielded with a polarizing key.

✓ Total Stock: 10 pcs

$ Price Range: $11.21 - $21.72

FFSD-25-D-03.00-01-N Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	2009	On Request	On Request

FFSD-25-D-03.00-01-N Description

Short technical summary and product information.

The Samtec FFSD-25-D-03.00-01-N is a Tiger Eye series IDC socket cable assembly designed for high-density interconnect applications. It provides 50 positions arranged in two rows on a 1.27mm (0.050") pitch, with socket-to-socket configuration. The cable assembly uses insulation displacement contact (IDC) termination for 30 AWG ribbon cable, ensuring reliable connections without stripping.

The contacts are made of beryllium copper with gold plating of 10 microinches (0.25µm) over nickel, offering excellent conductivity and corrosion resistance. The insulator is made of PBT material, and the assembly features a polarizing key for correct orientation during mating. The operating temperature range is -40°C to +105°C, and the current rating is 2.3A per pin when two pins are powered. The overall length of the assembly is 76.20mm (3.00 inches).

This cable assembly mates with Samtec headers from the FTS, FTSH, EHF, SHF, and ESHF series. It is suitable for board-to-cable connections in compact electronic systems, industrial equipment, and data transmission applications. The unshielded design and IDC termination make it a cost-effective solution for parallel interface connections.

FFSD-25-D-03.00-01-N Quick Information

Product Type: IDC Socket Cable Assembly

Series: FFSD

Canonical Name: FFSD-25-D-03.00-01-N Socket to Socket IDC Cable Assembly

Subcategory: Rectangular Cable Assemblies

FFSD-25-D-03.00-01-N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FFSD-25-D-03.00-01-N Estimated Pricing

Qty	Low	High
1+	$21.72	$21.72
10+	$20.77	$20.77
25+	$19.69	$19.69
50+	$18.31	$18.31
100+	$15.96	$15.96
250+	$14.19	$14.19
500+	$13.10	$13.10
1,000+	$11.21	$11.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

FFSD-25-D-03.00-01-N Features

50 positions in 2 rows at 1.27mm pitch.
IDC termination for 30 AWG ribbon cable.
Gold-plated beryllium copper contacts.
PBT insulator material with polarizing key.
Operating temperature range -40 to +105°C.

FFSD-25-D-03.00-01-N Applications

Used for high-density interconnect applications.
Ideal for board-to-cable connections in compact systems.
Suitable for data and signal transmission in industrial equipment.
Mates with Samtec FTS, FTSH, EHF, SHF, ESHF headers.

FFSD-25-D-03.00-01-N FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions and rows?

50 positions arranged in 2 rows.

What is the pitch?

1.27mm (0.050")

What is the operating temperature range?

-40°C to +105°C

What is the current rating?

2.3A per pin (2 pins powered)

What is the contact finish and thickness?

Gold plating, 10µin (0.25µm)

What wire gauge is accepted?

30 AWG

What headers does this cable assembly mate with?

FTS, FTSH, EHF, SHF, ESHF series

Category	Rectangular Cable Assemblies
Manufacturer Name	Samtec Inc.
Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Beryllium Copper
Current Rating	2.3 A
Features	Polarizing Key
Insulator Material	PBT
Length	0.250' (76.20mm, 3.00")
Number of Positions	50
Number of Rows	2
Operating Temperature Range	-40°C to +105°C
Pitch	1.27mm (0.050")
Shielding	Unshielded
Tape & Reel	No
