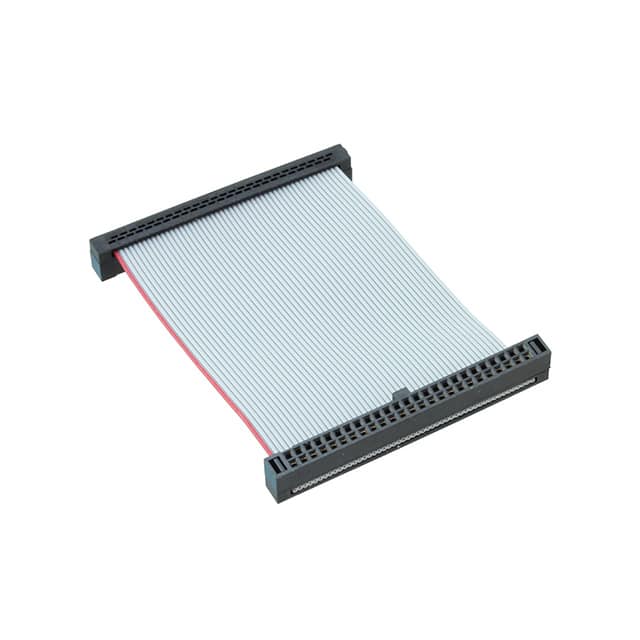

FFSD-25-D-02.00-01-N-R This is a 50-position, 1.27mm pitch IDC socket-to-socket reversed ribbon cable assembly from Samtec. Features gold plated beryllium copper contacts and PBT insulator.
Mfr Part #:

FFSD-25-D-02.00-01-N-R

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This is a 50-position, 1.27mm pitch IDC socket-to-socket reversed ribbon cable assembly from Samtec. Features gold plated beryllium copper contacts and PBT insulator.
✓ Total Stock: 14 pcs
$ Price Range: $13.27 - $22.50

FFSD-25-D-02.00-01-N-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFSD-25-D-02.00-01-N-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Insulator Material
Length
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Shielding
Tape & Reel
Termination Style
Wire Gauge
View Similar Products (0)

FFSD-25-D-02.00-01-N-R Description

Short technical summary and product information.

The Samtec FFSD-25-D-02.00-01-N-R is a 50-position IDC socket ribbon cable assembly with a 1.27mm pitch. It features a socket-to-socket reversed wiring configuration and a polarization notch. The cable uses 30 AWG wire and is terminated via IDC (Insulation Displacement Connection) for reliable mass termination.



Electrical performance includes a current rating of 2.3A per pin (2 pins powered) and an operating temperature range of -40°C to +105°C. Contacts are made of beryllium copper with 0.25µm gold plating over nickel. The insulator is PBT. The assembly accepts a lead size of 0.41mm square and has an insertion depth of 2.64mm to 3.17mm.



This assembly is designed to mate with Samtec FTS, FTSH, EHF, SHF, and ESHF series headers. It is unshielded and comes in a gray ribbon cable. The reversed orientation provides routing flexibility in tight layouts. Typical applications include board-to-board interconnects and internal wiring harnesses in industrial or consumer electronics.

FFSD-25-D-02.00-01-N-R Quick Information

Product Type: Rectangular Cable Assembly
Series: FFSD
Canonical Name: Samtec FFSD-25-D-02.00-01-N-R, 50 Position IDC Socket to Socket Reversed Ribbon Cable Assembly
Subcategory: Socket to Socket, Reversed

FFSD-25-D-02.00-01-N-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FFSD-25-D-02.00-01-N-R Estimated Pricing

Qty Low High
1+ $22.50 $22.50
10+ $20.76 $20.76
25+ $19.53 $19.53
50+ $18.58 $18.58
100+ $16.89 $16.89
250+ $15.40 $15.40
500+ $13.27 $13.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

FFSD-25-D-02.00-01-N-R Features

  • 50-position, 2-row IDC socket assembly.
  • 1.27mm pitch for high-density wiring.
  • Rated for 2.3A per pin current.
  • Operates from -40°C to +105°C.
  • Gold plated beryllium copper contacts.

FFSD-25-D-02.00-01-N-R Applications

  • Used in board-to-board interconnections.
  • Suitable for ribbon cable wiring harnesses.
  • Ideal for prototyping and production.
  • Connects socket headers in electronic assemblies.

FFSD-25-D-02.00-01-N-R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of this cable assembly?

-40°C to +105°C

Is this product RoHS compliant?

RoHS3 Compliant (unverified)

What is the pitch of the FFSD-25-D-02.00-01-N-R?

1.27mm (0.050")

How many positions does this connector have?

50 positions in 2 rows

What is the current rating per pin?

2.3A per pin (2 pins powered)

What contact finish is used?

Gold, 0.25µm (10.0µin) over nickel
