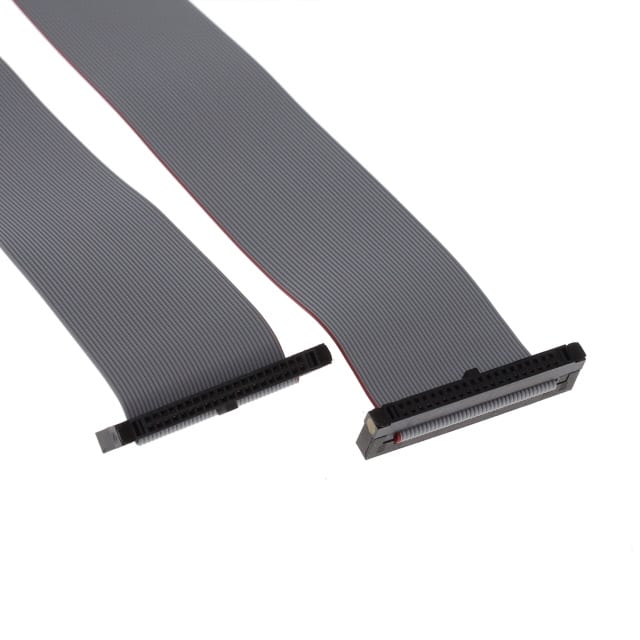

FFSD-20-D-36.00-01-N-SR Samtec FFSD-20-D-36.00-01-N-SR is a 40-position, double-ended IDC socket-to-socket ribbon cable assembly with 1.27mm pitch, 3.00 ft length, unshielded, gold-plated contacts, and includes polarizing key and strain relief.
Mfr Part #:

FFSD-20-D-36.00-01-N-SR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FFSD-20-D-36.00-01-N-SR is a 40-position, double-ended IDC socket-to-socket ribbon cable assembly with 1.27mm pitch, 3.00 ft length, unshielded, gold-plated contacts, and includes polarizing key and strain relief.
✓ Total Stock: 62 pcs
$ Price Range: $18.25 - $30.92

FFSD-20-D-36.00-01-N-SR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFSD-20-D-36.00-01-N-SR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Insulator Material
Length
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Shielding
Tape & Reel
Wire Gauge
View Similar Products (0)

FFSD-20-D-36.00-01-N-SR Description

Short technical summary and product information.

The Samtec FFSD-20-D-36.00-01-N-SR is a 40-position double-ended IDC socket-to-socket ribbon cable assembly from the FFSD series. It features a 1.27mm (0.050") pitch and a cable length of 914.40mm (3.00 ft). The assembly is unshielded and uses a gray ribbon cable with IDC termination. Contacts are made of beryllium copper with 10µin (0.25µm) gold plating over 50µin nickel on the contact area. The insulator material is PBT. This assembly includes a polarizing key and strain relief. It mates with Samtec FTS, FTSH, EHF, SHF, and ESHF series headers. The operating temperature range is -40°C to +105°C. Current rating is 2.3 A per pin (2 pins powered). Wire gauge is 30 AWG.

FFSD-20-D-36.00-01-N-SR Quick Information

Product Type: Rectangular Cable Assembly
Series: FFSD
Canonical Name: Samtec FFSD Series 40-Position Double-Ended IDC Socket Ribbon Cable Assembly, 3.00 ft, Unshielded
Subcategory: Ribbon Cable Assembly

FFSD-20-D-36.00-01-N-SR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FFSD-20-D-36.00-01-N-SR Estimated Pricing

Qty Low High
1+ $30.92 $30.92
10+ $28.58 $28.58
25+ $26.78 $26.78
50+ $25.46 $25.46
100+ $23.23 $23.23
250+ $21.22 $21.22
500+ $18.25 $18.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

FFSD-20-D-36.00-01-N-SR Features

  • 40-position double-ended IDC socket assembly.
  • 1.27mm pitch with 3.00 ft cable length.
  • Gold-plated beryllium copper contacts.
  • Includes polarizing key and strain relief.
  • Rated for 2.3 A per pin at 2 pins powered.

FFSD-20-D-36.00-01-N-SR Applications

  • Prototyping and production cable interconnects.
  • Board-to-board signal routing in tight spaces.
  • IDC mass termination for flat ribbon cables.

FFSD-20-D-36.00-01-N-SR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the FFSD-20-D-36.00-01-N-SR?

The pitch is 1.27mm (0.050").

What is the cable length?

The cable length is 914.40mm (3.00 ft).

What is the operating temperature range?

-40°C to +105°C.

Is this assembly RoHS compliant?

RoHS3 compliant (unverified).

What is the current rating?

2.3 A per pin (2 pins powered).

What connectors does this cable mate with?

It mates with Samtec FTS, FTSH, EHF, SHF, and ESHF series headers.

Does this assembly include strain relief?

Yes, it includes a strain relief feature.
