| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Insertion Depth | |
| Insulator Material | |
| Lead Size Accepted | |
| Length | |
| Mating Connectors | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Plating Specification | |
| Shielding | |
| Tape & Reel | |
| Wire Gauge |

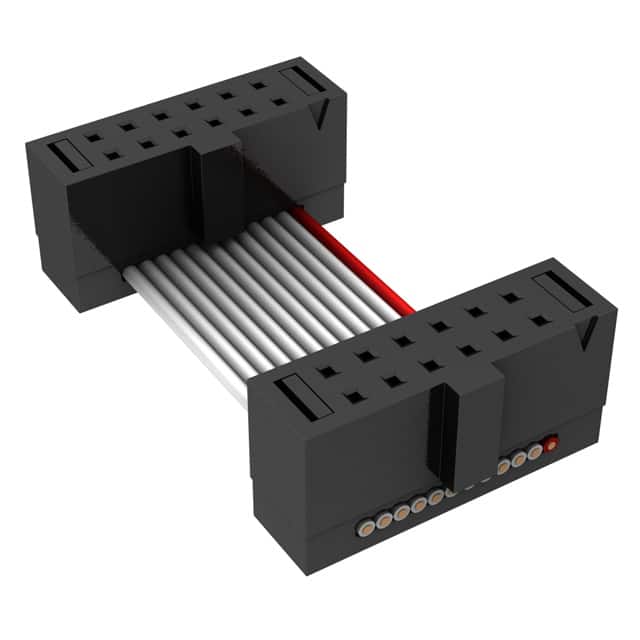

The Samtec FFSD-06-D-10.00-01-N is a .050" (1.27 mm) pitch low profile Tiger Eye IDC ribbon cable assembly from the FFSD series. It features a socket to socket configuration with 12 positions arranged in 2 rows. The assembly is 10.00" (254 mm) long and uses 30 AWG wire with IDC termination for reliable connections.
The contacts are made of beryllium copper with gold plating (10 µ" Au over 50 µ" Ni) on the contact area and tin over nickel on the balance. The insulator is PBT material. The assembly includes a polarizing key for correct orientation and is unshielded. It is rated for 2.3 A per pin (2 pins powered) and operates over a temperature range of -40 °C to +105 °C.
This cable assembly mates with Samtec FTS, FTSH, EHF, SHF, and ESHF series connectors. It is suitable for high-reliability applications requiring a compact, low profile interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.56 | $12.56 |
| 10+ | $11.37 | $11.37 |
| 25+ | $10.42 | $10.42 |
| 50+ | $9.53 | $9.53 |
| 100+ | $8.43 | $8.43 |
| 250+ | $8.42 | $8.42 |
| 500+ | $7.48 | $7.48 |
| 1,000+ | $6.51 | $6.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27 mm (0.050").
It has 12 positions arranged in 2 rows.
The operating temperature range is -40 °C to +105 °C.
Yes, it is listed as RoHS3 Compliant.
The current rating is 2.3 A per pin (2 pins powered).
The wire gauge is 30 AWG.
The contact area has 10 µ" Au over 50 µ" Ni; the balance has Sn over 50 µ" Ni.
