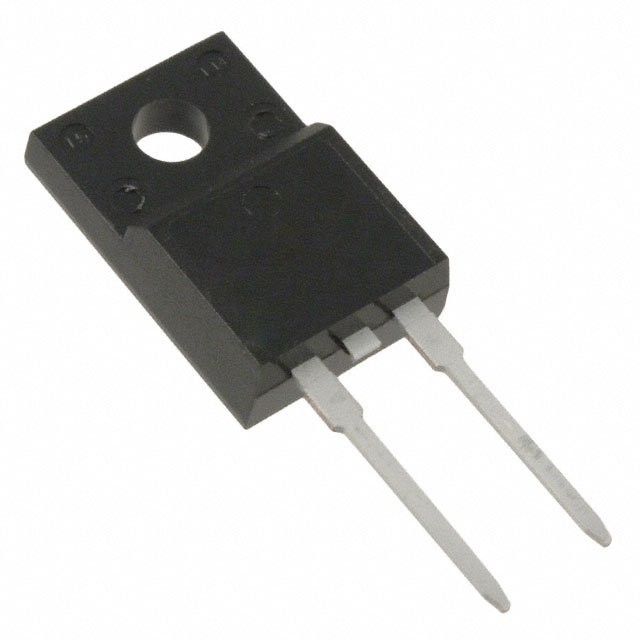

FFPF30UA60S The FFPF30UA60S is a 600V, 30A ultrafast II diode from On Semiconductor. It features a 90ns reverse recovery time and is RoHS compliant.
Mfr Part #:

FFPF30UA60S

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FFPF30UA60S is a 600V, 30A ultrafast II diode from On Semiconductor. It features a 90ns reverse recovery time and is RoHS compliant.
✓ Total Stock: 31,385 pcs

FFPF30UA60S Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
385 pcs
On Request
385 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFPF30UA60S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Medical Grade
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

FFPF30UA60S Description

Short technical summary and product information.

The FFPF30UA60S is an ultrafast II diode designed by On Semiconductor for high-efficiency power switching applications. It offers a peak repetitive reverse voltage of 600V and an average rectified forward current of 30A at a case temperature of 43°C. The device features a maximum forward voltage of 2.2V at 30A and 25°C, and a reverse recovery time of 90ns, making it suitable for fast switching circuits. It is avalanche energy rated with a minimum of 20mJ. The diode is housed in a TO-220-2 Full Pack package (TO-220F-2L) with through-hole mounting. It is Pb-free and RoHS compliant. Typical applications include boost diodes in power factor correction (PFC) and switched-mode power supplies (SMPS), as well as welders, UPS, and motor control systems.

FFPF30UA60S Quick Information

Product Type: Rectifier Diode
Canonical Name: FFPF30UA60S - Ultrafast II Diode, 600V, 30A, TO-220F
Subcategory: Single Rectifier Diode

FFPF30UA60S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FFPF30UA60S Features

  • Ultrafast recovery time of 90ns.
  • 600V reverse voltage rating.
  • 30A average forward current.
  • Avalanche energy rated at 20mJ.
  • RoHS compliant and Pb-free.

FFPF30UA60S Applications

  • Boost diode in PFC and SMPS circuits.
  • Freewheeling diode in motor control applications.
  • Clamping diode in UPS and welder systems.
  • Used in switching power supplies.

FFPF30UA60S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the FFPF30UA60S?

600V.

What is the average rectified forward current?

30A at TC=43°C.

What is the forward voltage drop?

Maximum 2.2V at 30A and 25°C.

What is the reverse recovery time?

90ns at IF=30A, diF/dt=200A/µs.

What package is the FFPF30UA60S available in?

TO-220-2 Full Pack (TO-220F-2L).

Is the device RoHS compliant?

Yes, RoHS3 compliant and Pb-free.

What is the operating junction temperature range?

-65°C to 175°C.
