| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76,000 pcs
|
76000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,300 pcs
|
5300 pcs | On Request | 1 | On Request | On Request | 1826 | On Request | On Request | |
|
1,453 pcs
|
1453 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Avalanche Energy | |
| Current | |
| Current - Average Rectified (Io) | |
| Halogen Free | |
| Mounting Type | |
| Non-Repetitive Peak Surge Current | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Standard Package Qty | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance - Junction to Case | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

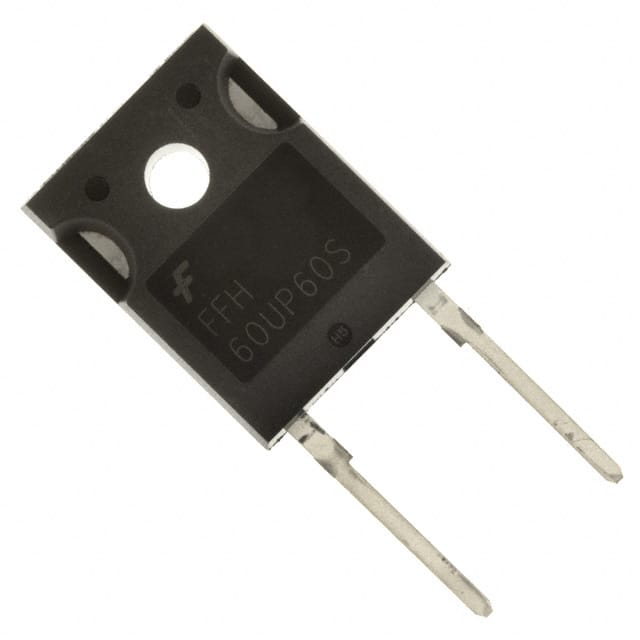

The FFH60UP60S is an ultrafast rectifier diode manufactured by On Semiconductor, designed for high-efficiency power switching applications. It is rated for a maximum reverse voltage of 600 V and an average rectified forward current of 60 A at a case temperature of 93 °C.
This device offers a typical forward voltage of 1.4 V and a maximum of 1.7 V at 60 A and 25 °C. Its reverse recovery time is typically 60 ns with a maximum of 80 ns, making it suitable for high-frequency circuits. The diode also features a non-repetitive peak surge current rating of 600 A and a minimum avalanche energy of 50 mJ, providing ruggedness in demanding environments.
The FFH60UP60S is packaged in a through-hole TO-247-2 case and supports an operating junction temperature range of -65 °C to 175 °C. It is RoHS compliant, lead-free, and halogen-free, meeting modern environmental standards.
| Qty | Low | High |
|---|---|---|
| 450+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (VRRM) is 600 V.
The average rectified forward current (Io) is 60 A at a case temperature of 93 °C.
The typical forward voltage is 1.4 V and the maximum is 1.7 V at 60 A and 25 °C.
The typical reverse recovery time is 60 ns and the maximum is 80 ns.
It is available in a through-hole TO-247-2 package.
The operating junction temperature range is -65 °C to 175 °C.
Yes, it is RoHS3 compliant, lead-free, and halogen-free.
