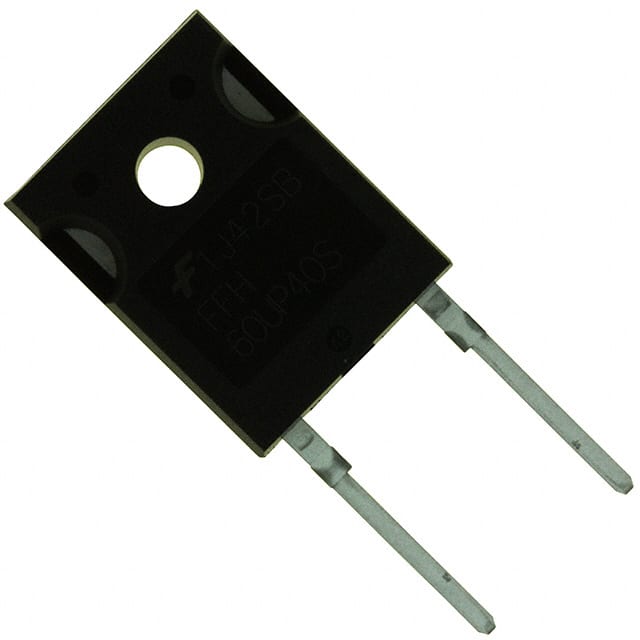

The FFH60UP40S is an ultrafast recovery diode designed for high-efficiency power switching applications. It offers a 60A average rectified forward current and a 400V reverse voltage rating. The diode features a low forward voltage drop of 1.06V typical at 60A and 25°C, and an ultrafast reverse recovery time of 59ns typical. It is avalanche energy rated with a minimum of 50mJ. The device is intended for use as freewheeling and clamping diodes in switching power supplies, welders, and UPS systems. It is housed in a TO-247-2LD through-hole package and is RoHS, Pb-Free, and Halogen Free compliant.
| Qty | Low | High |
|---|---|---|
| 450+ | $2.04 | $2.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 400 V (peak repetitive, working peak, and DC blocking).
The average rectified forward current is 60 A at a case temperature of 139°C.
At 60 A and 25°C, the typical forward voltage is 1.06 V and the maximum is 1.3 V.
At 60 A, 200 A/µs, 260 V, and 25°C, the typical trr is 59 ns and the maximum is 85 ns.
It is available in a TO-247-2LD through-hole package.
Yes, it is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free as stated in the datasheet.
The operating and storage temperature range is -65°C to 150°C.
