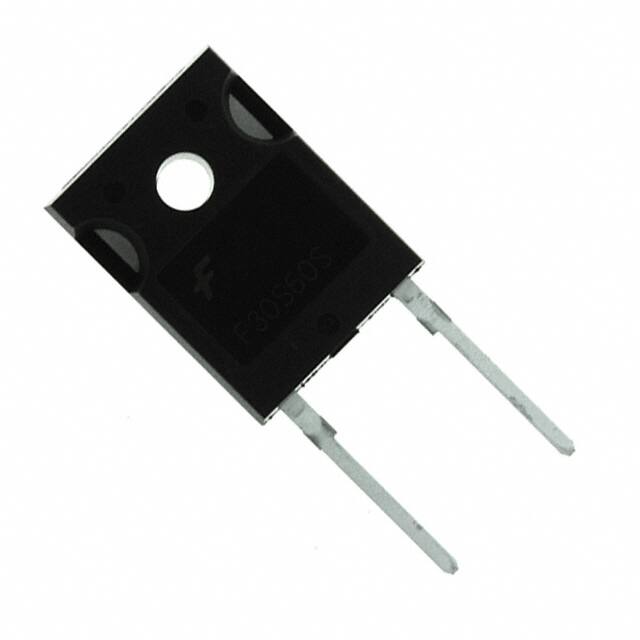

The FFH30S60STU is a 600V, 30A Stealth II rectifier from ON Semiconductor designed for power switching applications. It utilizes a silicon nitride passivated, ion-implanted epitaxial planar construction to deliver soft recovery characteristics, minimizing ringing and electrical noise. The device's low stored charge and hyperfast switching (trr < 35ns at 30A) make it ideal for use as a freewheeling or boost diode in switching power supplies and continuous-mode power factor correction circuits.
Key electrical specifications include a peak repetitive reverse voltage of 600V, an average rectified forward current of 30A at TC=102°C, and a typical forward voltage of 2.1V at 25°C (1.6V at 125°C). The non-repetitive peak surge current is rated at 300A (60Hz half-sine wave). The device offers a junction-to-case thermal resistance of 1.1°C/W and operates over a temperature range of -65°C to +175°C.
The FFH30S60STU is available in a through-hole TO-247-2 package, which is Pb-Free and RoHS compliant. This package provides excellent heat dissipation for high-current applications. The device is suitable for general purpose rectification, switching mode power supplies, and power switching circuits.
| Qty | Low | High |
|---|---|---|
| 450+ | $5.34 | $5.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Peak repetitive reverse voltage (VRRM) is 600V.
Average rectified forward current (IF(AV)) is 30A at TC=102°C.
Typical forward voltage is 2.1V at 30A, 25°C (max 2.6V). At 125°C, typical is 1.6V.
Typical trr is 25.2ns, maximum 30ns at IF=1A, di/dt=100A/µs, VR=30V, 25°C.
Through-hole TO-247-2 package (2 leads).
Operating and storage temperature range is -65°C to +175°C.
Non-repetitive peak surge current (IFSM) is 300A (60Hz half-sine wave).
