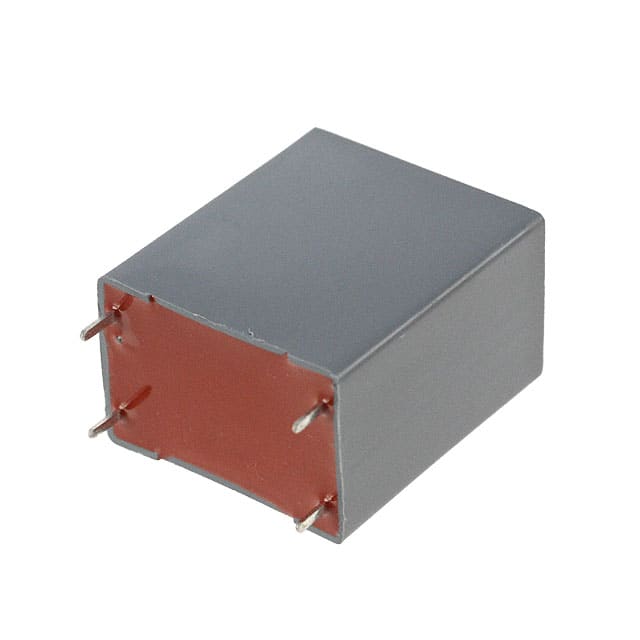

FFB56J0136KJC The Kyocera AVX FFB56J0136KJC is a 13 µF metallized polypropylene film capacitor rated for 525V DC. It features ±10% tolerance and a through-hole radial package with 4 leads.
Mfr Part #:

FFB56J0136KJC

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX FFB56J0136KJC is a 13 µF metallized polypropylene film capacitor rated for 525V DC. It features ±10% tolerance and a through-hole radial package with 4 leads.
✓ Total Stock: 9 pcs
$ Price Range: $10.44

FFB56J0136KJC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFB56J0136KJC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Standards
Tape & Reel
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

FFB56J0136KJC Description

Short technical summary and product information.

The Kyocera AVX FFB56J0136KJC is a metallized polypropylene film capacitor from the FFB series, designed for DC filtering and DC link applications. It offers a nominal capacitance of 13 µF with a tolerance of ±10% and a DC voltage rating of 525V.



The capacitor uses a self-extinguishing plastic case (UL 94 V0) and is filled with thermosetting resin. It operates over a temperature range of -55°C to 105°C. The radial package features 4 leads with a lead spacing of 27.5 mm, and mounting is through-hole with PC pin terminations.



This capacitor meets several international standards including IEC 61071-1, IEC 61071-2, IEC 60384-16, and IEC 60384-17, among others. It is a dry polypropylene solution suitable for printed circuit board mounting and offers high surge voltage capability compared to electrolytic capacitors.

FFB56J0136KJC Quick Information

Product Type: Film Capacitor
Series: FFB
Canonical Name: Kyocera AVX FFB56J0136KJC 13 µF ±10% 525V DC Metallized Polypropylene Film Capacitor
Subcategory: Metallized Polypropylene Film Capacitor

FFB56J0136KJC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FFB56J0136KJC Estimated Pricing

Qty Low High
96+ $10.44 $10.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

FFB56J0136KJC Features

  • Metallized polypropylene dielectric for high stability.
  • Rated for 525V DC operation.
  • Capacitance of 13 µF with ±10% tolerance.
  • Through-hole radial package with 4 leads.
  • Operating temperature range -55°C to 105°C.

FFB56J0136KJC Applications

  • Designed for DC filtering and DC link applications.
  • Suitable for power electronic circuits.
  • Used in printed circuit board mounting.

FFB56J0136KJC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the FFB56J0136KJC?

The capacitance is 13 µF.

What is the voltage rating of this capacitor?

The DC voltage rating is 525V.

What dielectric material is used?

Metallized polypropylene (PP).

What is the capacitance tolerance?

±10%.

What is the package type and mounting style?

Radial - 4 Leads, through-hole mounting with PC pins.

What is the operating temperature range?

-55°C to 105°C.

Which standards does this capacitor comply with?

It complies with IEC 61071-1, IEC 61071-2, IEC 60384-16, IEC 60384-16-1, IEC 60384-17, IEC 60384-17-1, and IEC 60384-2.
