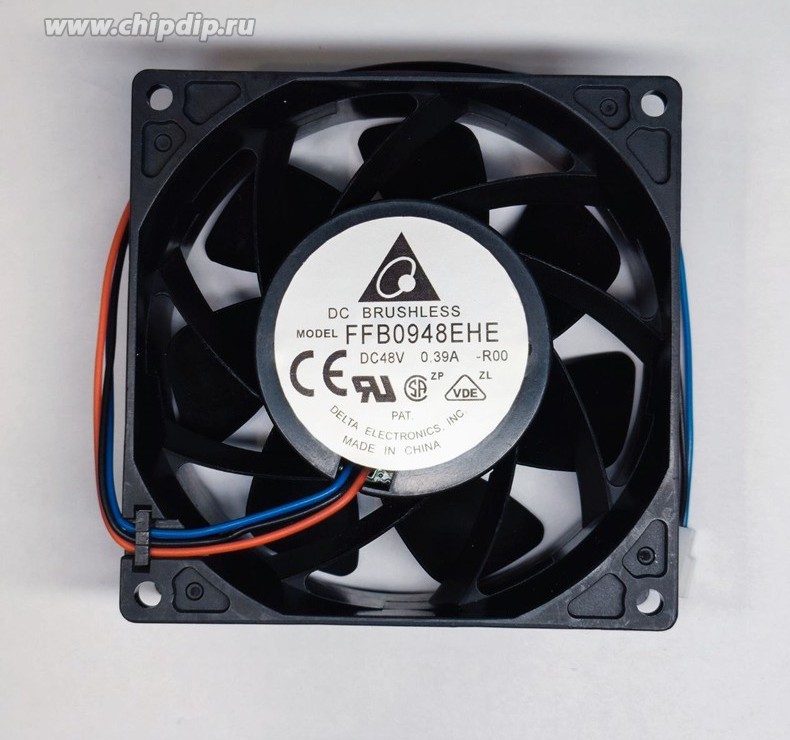

FFB0948EHE The Delta Electronics FFB0948EHE is a 48VDC tubeaxial fan with 103.7 CFM airflow and 4800 RPM. It features a 92x38mm square frame and ball bearing system.
Mfr Part #:

FFB0948EHE

Available from 1 distributors
Mfr Name: Delta Electronics
Delta Electronics
The Delta Electronics FFB0948EHE is a 48VDC tubeaxial fan with 103.7 CFM airflow and 4800 RPM. It features a 92x38mm square frame and ball bearing system.
✓ Total Stock: 1 pcs

FFB0948EHE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFB0948EHE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Air Flow
Approval Agency
Bearing Type
Fan Type
Features
Lead Style
Noise
Operating Temperature
Power (Watts)
RPM
Static Pressure
Termination
Voltage
Weight
Width
View Similar Products (0)

FFB0948EHE Description

Short technical summary and product information.

The Delta Electronics FFB0948EHE is a 48VDC brushless DC tubeaxial fan designed for thermal management applications. It operates at 4800 RPM with a power consumption of 10.08 W, delivering 103.7 CFM (2.90 m³/min) of airflow and 172.1 Pa (0.691 in H2O) of static pressure. The fan uses a ball bearing system for reliable long-life operation and produces a noise level of 54.0 dB(A).



The fan has a square 92mm x 92mm frame with a 38mm depth and weighs 250.84 g (0.553 lb). It is terminated with 2 wire leads for easy connection. The fan includes locked rotor protection and is rated for an operating temperature range of -10°C to 60°C. It carries agency approvals from CE, CSA, UL, and VDE.



This fan is suitable for cooling electronic enclosures, telecommunications equipment, servers, and industrial control panels where 48VDC power is available and moderate static pressure is required.

FFB0948EHE Quick Information

Product Type: DC Brushless Fan (Tubeaxial)
Canonical Name: Delta Electronics FFB0948EHE 48VDC Tubeaxial Fan
Subcategory: DC Brushless Fans (BLDC)

FFB0948EHE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FFB0948EHE Features

  • 48VDC tubeaxial fan with 103.7 CFM.
  • Ball bearing system for long life.
  • 4800 RPM with 172.1 Pa static pressure.
  • Square 92x38mm frame for compact mounting.
  • Locked rotor protection included.

FFB0948EHE Applications

  • Cools electronic enclosures and telecom equipment.
  • Used in server and networking gear.
  • Suitable for HVAC and industrial control panels.
  • Ideal for medical device thermal management.
  • Provides ventilation for rack-mounted systems.

FFB0948EHE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the FFB0948EHE fan?

48 VDC

What are the dimensions of this fan?

Square 92mm x 92mm with 38mm depth (92 x 92 x 38 mm).

What is the operating temperature range?

-10°C to 60°C.

Is this fan RoHS compliant?

RoHS3 compliant (unverified).

What is the maximum airflow?

103.7 CFM (2.90 m³/min).

What type of bearing does it use?

Ball bearing.

What is the noise level?

54.0 dB(A).
