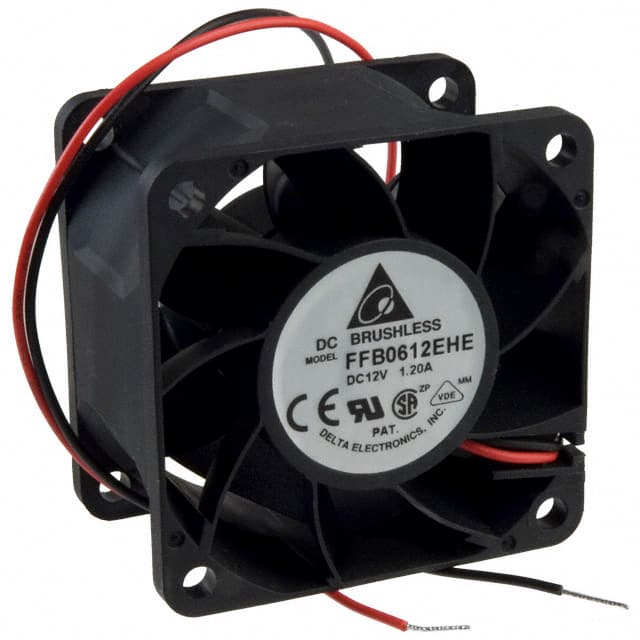

FFB0612EHE Delta Electronics FFB0612EHE is a 12VDC tubeaxial fan measuring 60x60x38mm. It delivers 50.2 CFM (1.41 m³/min) at 8000 RPM with a noise level of 54.5 dB(A).
Mfr Part #:

FFB0612EHE

Available from 1 distributors
Mfr Name: Delta Electronics
Delta Electronics
Delta Electronics FFB0612EHE is a 12VDC tubeaxial fan measuring 60x60x38mm. It delivers 50.2 CFM (1.41 m³/min) at 8000 RPM with a noise level of 54.5 dB(A).
✓ Total Stock: 6 pcs
$ Price Range: $8.82 - $9.93

FFB0612EHE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFB0612EHE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Air Flow
Approval Agency
Bearing Type
Fan Type
Features
Height
Lead Style
Noise
Operating Temperature
Power (Watts)
RPM
Static Pressure
Termination
Termination Style
Voltage
Weight
Width
View Similar Products (0)

FFB0612EHE Description

Short technical summary and product information.

The Delta Electronics FFB0612EHE is a DC brushless tubeaxial fan designed for cooling applications. It operates at 12VDC with a power consumption of 9.6W and draws 0.8A. The fan delivers an airflow of 50.2 CFM (1.41 m³/min) with a static pressure of 0.972 in H2O (242.1 Pa) at a speed of 8000 RPM. Noise output is rated at 54.5 dB(A).



The fan features a ball bearing system for reliable long-life operation and includes locked rotor protection. It is constructed in a square 60mm x 60mm frame with a 38mm depth. Termination is via two wire leads. The operating temperature range is -10°C to 70°C.



This fan is suitable for cooling electronic equipment, telecommunications gear, and industrial enclosures where high airflow and pressure are required in a compact form factor. It carries approvals from CE, CSA, UL, and VDE, and is RoHS3 compliant.

FFB0612EHE Quick Information

Product Type: DC Brushless Fan (BLDC)
Series: FFB0612EHE
Canonical Name: Delta Electronics FFB0612EHE DC Brushless Fan, 60x60x38mm, 12VDC, 9.6W, 8000 RPM
Subcategory: Tubeaxial Fan

FFB0612EHE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FFB0612EHE Estimated Pricing

Qty Low High
2+ $9.93 $9.93
5+ $9.37 $9.37
10+ $8.82 $8.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

FFB0612EHE Features

  • 12VDC operation with 9.6W power consumption.
  • Delivers 50.2 CFM at 8000 RPM.
  • Ball bearing for long service life.
  • Locked rotor protection included.
  • Compact 60x60x38mm frame size.

FFB0612EHE Applications

  • Cooling for telecommunications equipment.
  • Thermal management in industrial enclosures.
  • Airflow for electronic device cabinets.
  • Suitable for server and networking gear.

FFB0612EHE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the FFB0612EHE?

12VDC.

What is the operating temperature range?

-10°C to 70°C.

Is the FFB0612EHE RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the airflow and static pressure?

50.2 CFM (1.41 m³/min) and 0.972 in H2O (242.1 Pa).

What bearing type does it use?

Ball bearing.

What are the dimensions?

60mm x 60mm x 38mm.

What approvals does it have?

CE, CSA, UL, VDE.
