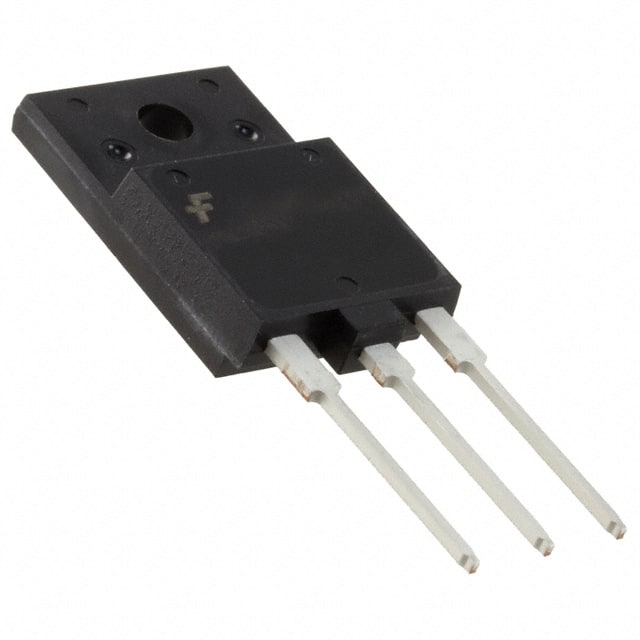

FFAF60UA60DN FFAF60UA60DN is a fast recovery diode array from ON Semiconductor, rated at 600V reverse voltage and 30A average rectified current, with a 90ns reverse recovery time, in a TO-3PF through-hole package.
Mfr Part #:

FFAF60UA60DN

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
FFAF60UA60DN is a fast recovery diode array from ON Semiconductor, rated at 600V reverse voltage and 30A average rectified current, with a 90ns reverse recovery time, in a TO-3PF through-hole package.
✓ Total Stock: 4,000 pcs

FFAF60UA60DN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FFAF60UA60DN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Industrial Grade
Lead Style
Medical Grade
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

FFAF60UA60DN Description

Short technical summary and product information.

The FFAF60UA60DN is a fast recovery diode array from ON Semiconductor, configured as a 1 pair common cathode. It is designed for high-efficiency rectification in power conversion circuits.



Key electrical specifications include a reverse voltage (Vrrm) of 600V and an average rectified current (Io) of 30A. The forward voltage (Vf) is 2.2V at 30A, and the reverse recovery time (trr) is 90ns, making it suitable for fast switching applications. The device operates over a junction temperature range of -65°C to 150°C.



The diode array is housed in a TO-3P-3 Full Pack (TO-3PF) through-hole package, offering robust thermal performance and easy mounting on a heatsink. The common cathode configuration simplifies circuit layout for center-tapped or bridge rectifier designs.

FFAF60UA60DN Quick Information

Product Type: Diode Array - Rectifier
Canonical Name: FFAF60UA60DN Fast Recovery Diode Array, 1 Pair Common Cathode, 600V, 30A, TO-3PF
Subcategory: Fast Recovery Rectifier Array

FFAF60UA60DN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

FFAF60UA60DN Features

  • Fast recovery time of 90 nanoseconds.
  • Rated for 600V reverse voltage and 30A average current.
  • Common cathode dual diode configuration.
  • Through-hole TO-3PF package for easy mounting.
  • Operating temperature range -65°C to 150°C.

FFAF60UA60DN Applications

  • Used in switch-mode power supply output rectification.
  • Ideal for freewheeling diodes in motor drives.
  • Suitable for high-frequency inverter circuits.
  • Common in power factor correction (PFC) stages.

FFAF60UA60DN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse voltage rating of the FFAF60UA60DN?

The reverse voltage (Vrrm) is 600V.

What is the average rectified current rating?

The average rectified current (Io) is 30A.

What is the forward voltage drop?

The forward voltage (Vf) is 2.2V at 30A.

What is the reverse recovery time?

The reverse recovery time (trr) is 90ns.

What package does the FFAF60UA60DN come in?

It comes in a TO-3P-3 Full Pack (TO-3PF) through-hole package.

What is the diode configuration?

It is a 1 pair common cathode configuration.

What is the operating temperature range?

The operating temperature range is -65°C to 150°C.
