| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style |

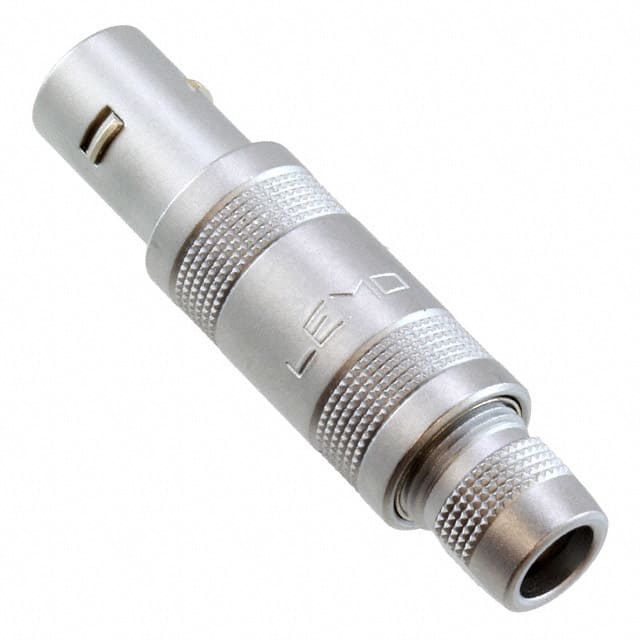

The LEMO FFA.0S.302.CLAC37 is a 2-position circular connector plug from the 0S series, designed for reliable signal and power connections in demanding environments. It features a push-pull fastening mechanism with a keyed orientation for secure mating. The connector is constructed with a brass shell finished in chrome and gold-plated contacts, ensuring excellent conductivity and corrosion resistance.
This plug is rated for a current of 10 A and operates over a wide temperature range from -55°C to 250°C. It is shielded for electromagnetic compatibility and has an IP50 ingress protection rating, making it suitable for indoor applications where dust protection is required. The solder cup termination allows for easy cable assembly.
The connector is free hanging (in-line) and includes a backshell feature. It accepts cables with an opening diameter of 0.126" to 0.146" (3.20mm to 3.70mm). The material flammability rating is UL94 V-0.
It has 2 positions.
The current rating is 10 A.
The mounting type is Free Hanging (In-Line).
The operating temperature range is -55°C to 250°C.
The ingress protection rating is IP50 (Dust Protected).
It uses Solder Cup termination.
Yes, it is shielded.
