| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,777 pcs
|
1777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gate Charge | |
| Input Capacitance | |
| Mounting Type | |
| Operating Temperature |

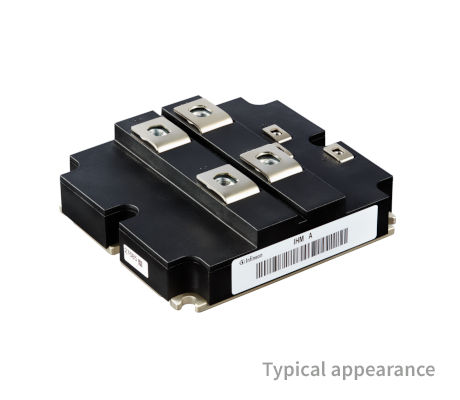

The Infineon FF800R17KP4_B2 is an IHM-A module featuring Trench/Fieldstop IGBT4 and an emitter-controlled diode. It is designed for high-power applications such as high-performance converters, medium-voltage drives, motor drives, traction converters, and wind turbines.
Key electrical features include an extended operating temperature of 150°C and low VCEsat. The module boasts a 1700V collector-emitter voltage and a continuous DC collector current of 800A at 80°C, with a peak current capability of 1600A. The gate-emitter voltage is rated at ±20V.
Mechanical features include a 4kV AC 1-minute insulation strength and an AlSiC base plate for enhanced thermal cycling capability. This high power density module comes in a standard housing.
Potential applications include high-power converters, medium-voltage drives, motor drives, traction converters, and wind turbines.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vces) is 1700V at 25°C.
The continuous DC collector current is 800A at 80°C and 150°C maximum junction temperature, and 1200A at 25°C and 150°C maximum junction temperature.
The maximum operating junction temperature (Tvj op) is 150°C.
The module has an insulation strength of 4kV AC for 1 minute.
It uses an AlSiC base plate for increased thermal cycling capability.
