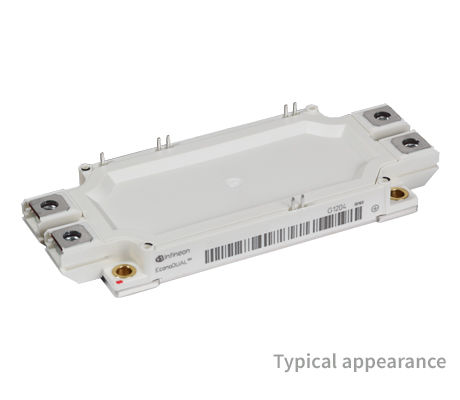

FF450R12ME4 FF450R12ME4 is an IGBT module from Infineon Technologies featuring 1200V collector-emitter voltage and 450A collector current. It is a half bridge inverter configuration with trench field stop technology.
Mfr Part #:

FF450R12ME4

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
FF450R12ME4 is an IGBT module from Infineon Technologies featuring 1200V collector-emitter voltage and 450A collector current. It is a half bridge inverter configuration with trench field stop technology.
✓ Total Stock: 4,909 pcs

FF450R12ME4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,569 pcs
On Request
3569 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,340 pcs
On Request
1340 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FF450R12ME4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Halogen Free
IGBT Type
Input
Input Capacitance (Cies) @ Vce
Mounting Type
NTC Thermistor
Operating Temperature
Power
Supplier Device Package
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

FF450R12ME4 Description

Short technical summary and product information.

The FF450R12ME4 is an IGBT module manufactured by Infineon Technologies. It is a half bridge inverter configuration utilizing trench field stop technology. This module is rated for a collector-emitter voltage of 1200V and a collector current of 450A. The maximum collector-emitter saturation voltage is 2.1V at Vge=15V and Ic=450A. The input capacitance is 28 nF at Vce=25V. The module includes an NTC thermistor for temperature monitoring.



Designed for high power applications, the FF450R12ME4 is suitable for motor drives, inverters, and power supplies. The trench field stop IGBT technology enables low conduction and switching losses, improving efficiency. The module is housed in an AG-ECONOD package and is intended for chassis mount installation. The operating junction temperature range is -40°C to 150°C.



The module is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). Note that compliance data is unverified. The part number is widely cross-referenced under Digi-Key part number 2156-FF450R12ME4-ND.

FF450R12ME4 Quick Information

Product Type: IGBT Module
Canonical Name: FF450R12ME4 IGBT Module, Half Bridge Inverter, 1200V, 450A, Trench Field Stop, AG-ECONOD
Subcategory: Half Bridge IGBT Module

FF450R12ME4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

FF450R12ME4 Features

  • Trench field stop IGBT technology.
  • Half bridge inverter configuration.
  • Rated for 1200V collector-emitter voltage.
  • 450A collector current capability.
  • Includes NTC thermistor for temperature monitoring.

FF450R12ME4 Applications

  • Used in motor drive inverters.
  • Suitable for industrial power supplies.
  • Ideal for welding equipment.

FF450R12ME4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the FF450R12ME4?

The collector-emitter voltage is 1200V.

What is the package type?

The package is AG-ECONOD Module.

What is the operating temperature range?

The junction temperature range is -40°C to 150°C.

Is the FF450R12ME4 RoHS compliant?

The device is listed as RoHS3 Compliant, but this status is unverified.

What is the collector current rating?

The collector current is 450A.

Does the module include an NTC thermistor?

Yes, it includes an NTC thermistor for temperature monitoring.

What is the maximum collector-emitter saturation voltage?

The maximum Vce(on) is 2.1V at Vge=15V and Ic=450A.
