Mfr Part #:

FF300R17KE3

Mfr Name: Infineon

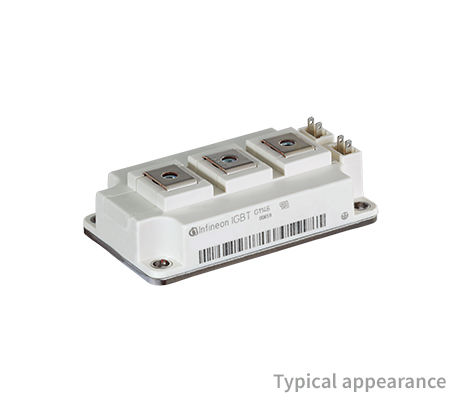

The Infineon FF300R17KE3 is a high-power IGBT module designed for inverter applications. It features a 1700V collector-emitter voltage and a continuous collector current of 300A.

✓ Total Stock: 2,500 pcs

$ Price Range: $103.07

FF300R17KE3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	2,500 pcs On Request	2500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FF300R17KE3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Gate Charge	3.50 µC
Input Capacitance	27.0 nF

View Similar Products (0)

FF300R17KE3 Description

Short technical summary and product information.

The Infineon FF300R17KE3 is a 62mm C-series IGBT module equipped with Trench/Fieldstop IGBT3 and Emitter Controlled 3 diodes. This module is designed for inverter applications and offers a maximum collector-emitter voltage (VCES) of 1700V.

Key electrical specifications include a continuous DC collector current (IC) of 300A at 80°C and a peak collector current (ICRM) of 600A. The total power dissipation (Ptot) is rated at 1450W at 25°C. The module exhibits a typical collector-emitter saturation voltage (VCE sat) of 2.00V at 300A and 25°C.

Switching characteristics are also detailed, with turn-on delay time (td on) typically 0.28µs and turn-off delay time (td off) typically 0.80µs at 25°C. Energy losses per pulse, such as turn-on energy (Eon) and turn-off energy (Eoff), are provided for design optimization.

This IGBT module is suitable for various power electronic applications requiring high voltage and current handling capabilities. Its robust design and detailed specifications make it a reliable component for demanding industrial and automotive systems.

FF300R17KE3 Quick Information

Product Type: IGBT Module

Series: C-Series

Canonical Name: Infineon FF300R17KE3 IGBT Module

Subcategory: IGBT Modules

FF300R17KE3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FF300R17KE3 Estimated Pricing

Qty	Low	High
1+	$103.07	$103.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

FF300R17KE3 Features

1700V collector-emitter voltage rating.
300A continuous collector current.
1450W total power dissipation.
Fast switching times for efficiency.
Low energy losses per pulse.

FF300R17KE3 Applications

Designed for power inverter applications.
Suitable for high-voltage systems.
Used in industrial power supplies.
Applicable in motor drives.

FF300R17KE3 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum collector-emitter voltage for the FF300R17KE3?

The maximum collector-emitter voltage (VCES) for the FF300R17KE3 is 1700 V.

What is the continuous DC collector current of the FF300R17KE3?

The continuous DC collector current (IC) is 300 A at 80°C and 404 A at 25°C.

What is the total power dissipation of the FF300R17KE3?

The total power dissipation (Ptot) is 1450 W at 25°C.

What is the typical gate threshold voltage for this IGBT module?

The typical gate threshold voltage (VGEth) is 5.8 V.

What are the typical turn-on and turn-off delay times?

The typical turn-on delay time (td on) is 0.28 µs at 25°C, and the typical turn-off delay time (td off) is 0.80 µs at 25°C.

What is the RoHS status of the FF300R17KE3?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
