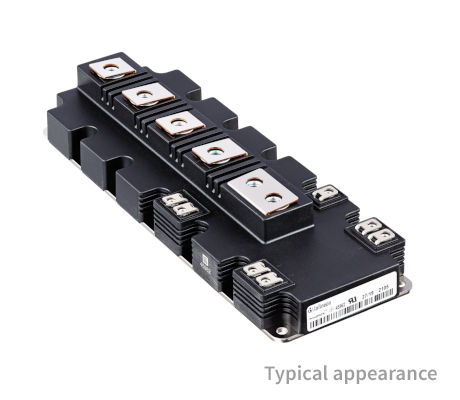

The Infineon FF1400R17IP4 is a high-performance IGBT module from the PrimePACK™3 family, utilizing Trench/Fieldstop IGBT4 and Emitter Controlled Diode technology. It is engineered for demanding applications such as 3-level systems, motor drives, and wind turbines.
Key electrical characteristics include a maximum collector-emitter voltage (VCES) of 1700V and a nominal continuous DC collector current (IC nom) of 1400A at 100°C case temperature. The module also boasts a high repetitive peak collector current (ICRM) of 2800A for transient loads. It operates at a junction temperature up to 150°C.
Mechanical features include 4kV AC 1min insulation and a Comparative Tracking Index (CTI) greater than 400, ensuring robust performance. The module is designed with high creepage and clearance distances and integrates an NTC temperature sensor for thermal monitoring. It is RoHS compliant.
This module is suitable for applications requiring high short-circuit capability, high surge current capability, and high current density. Its design facilitates efficient power conversion in industrial and renewable energy systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $103.07 | $103.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCES) is 1700V at 25°C.
The continuous DC collector current (IC nom) is 1400A at 100°C case temperature and 175°C maximum junction temperature.
The repetitive peak collector current (ICRM) is 2800A for a pulse duration of 1 ms.
The typical collector-emitter saturation voltage (VCEsat) is 2.20V when IC = 1400A and VGE = 15V at 150°C.
The gate threshold voltage (VGEth) is typically 5.80V, with a minimum of 5.20V and a maximum of 6.40V, measured at 50.0 mA collector current and 25°C.
The module is designed for operation up to a junction temperature (Tvj op) of 150°C.
The module has an insulation strength of 4 kV AC for 1 minute.
