Mfr Part #:

FF1000R17IE4

Mfr Name: Infineon

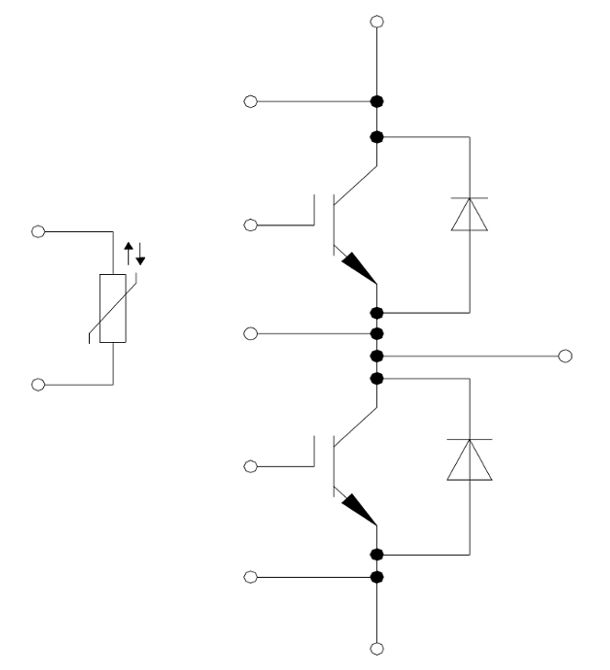

The Infineon FF1000R17IE4 is a high-power IGBT module designed for demanding applications. It offers a high voltage rating and significant current handling capabilities.

✓ Total Stock: 1,556 pcs

$ Price Range: $103.07

FF1000R17IE4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,556 pcs On Request	1556 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FF1000R17IE4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Gate Charge	10.0 µC
Input Capacitance	81.0 nF
Lead Style	Screw
Mounting Type	Through Hole
Operating Temperature	150°C
Tape & Reel	No

View Similar Products (0)

FF1000R17IE4 Description

Short technical summary and product information.

The Infineon FF1000R17IE4 is an IGBT module from the PrimePACK™3 family, designed for high-performance power electronics applications. It features a maximum Collector-Emitter Voltage (VCES) of 1700V and a continuous DC Collector Current (IC) of 1000A at 100°C case temperature.

This module boasts a total power dissipation (Ptot) of 6.25 kW at 25°C case temperature, indicating its capability for handling substantial power loads. Key electrical characteristics include a typical Collector-Emitter Saturation Voltage (VCEsat) of 2.35V at 1000A and 15V gate voltage at 25°C, and a Gate Threshold Voltage (VGEth) of 5.8V.

With an extended operating temperature up to 150°C (Tvj_op), the FF1000R17IE4 is suitable for applications requiring robust thermal performance. Mechanical features include a package with CTI > 400, high creepage and clearance distances, and a copper base plate for efficient heat dissipation. Typical applications include 3-level converters, auxiliary inverters, high-power converters, motor drives, and wind turbines.

FF1000R17IE4 Quick Information

Product Type: IGBT Module

Canonical Name: Infineon FF1000R17IE4 IGBT Module

Subcategory: IGBT Module

FF1000R17IE4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FF1000R17IE4 Estimated Pricing

Qty	Low	High
1+	$103.07	$103.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

FF1000R17IE4 Features

1700V Collector-Emitter Voltage rating.
1000A Continuous DC Collector Current.
6.25kW Total Power Dissipation.
Extended operating temperature to 150°C.
PrimePACK™3 package with copper base plate.

FF1000R17IE4 Applications

Suitable for 3-Level applications.
Used in auxiliary inverters.
Ideal for high-power converters.
Designed for motor drives.
Applicable to wind turbines.

FF1000R17IE4 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum Collector-Emitter Voltage (VCES) for the FF1000R17IE4?

The maximum Collector-Emitter Voltage (VCES) is 1700V at 25°C.

What is the continuous DC collector current rating?

The continuous DC collector current is 1000A at 100°C case temperature and 1390A at 25°C case temperature.

What is the peak collector current for the FF1000R17IE4?

The repetitive peak collector current (ICRM) is 2000A with a pulse duration of 1 ms.

What is the total power dissipation of this IGBT module?

The total power dissipation (Ptot) is 6.25 kW at 25°C case temperature.

What is the maximum operating temperature for the FF1000R17IE4?

The maximum operating junction temperature (Tvj_op) is 150°C.

What is the typical Gate Threshold Voltage?

The typical Gate Threshold Voltage (VGEth) is 5.8V.

What are the typical applications for the FF1000R17IE4?

Typical applications include 3-Level applications, auxiliary inverters, high-power converters, motor drives, and wind turbines.
