| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

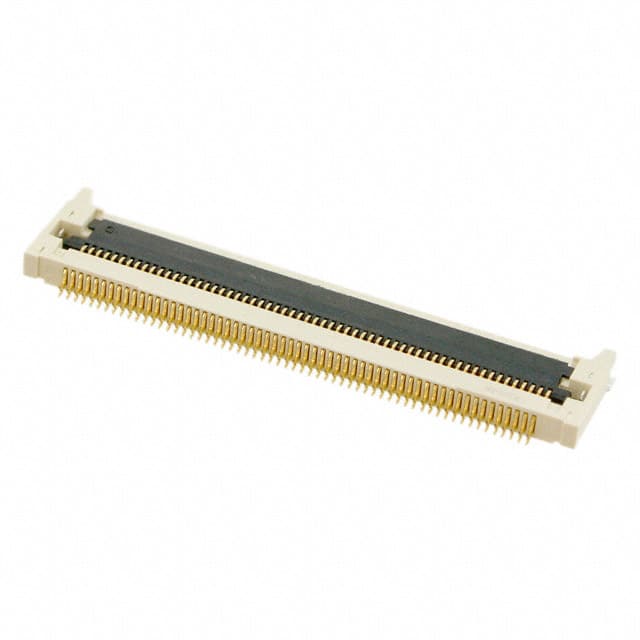

The JAE Electronics FF0360SA1 is a 60-position FPC connector designed for reliable flat flexible cable interconnections. It features a 0.5mm pitch and bottom contact configuration, making it suitable for space-constrained PCB layouts. The connector uses a Zero Insertion Force (ZIF) mechanism with a rotary lock to secure the cable without damaging the contacts.
This connector is rated for 50V and operates over a temperature range of -40°C to 85°C. Contacts are gold-plated copper alloy, and the housing is made of Liquid Crystal Polymer (LCP) with a glass-filled polyamide actuator. The right angle orientation allows for low-profile connections, with a height above board of 2.0mm.
Designed for surface mount soldering, the FF0360SA1 is suitable for automated assembly processes. It accepts FPC cables with a thickness of 0.30mm. The connector is RoHS3 compliant and has an MSL of 1 (unlimited floor life).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.54 | $8.54 |
| 10+ | $7.26 | $7.26 |
| 25+ | $6.80 | $6.80 |
| 50+ | $6.48 | $6.48 |
| 1,000+ | $6.37 | $6.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm (0.020 inches).
It has 60 positions.
Surface Mount, Right Angle.
The voltage rating is 50V.
-40°C to 85°C.
Yes, it has a rotary lock (ZIF).
2.0mm (0.079 inches).
