| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Ripple | |
| Type | |
| Voltage | |
| Width |

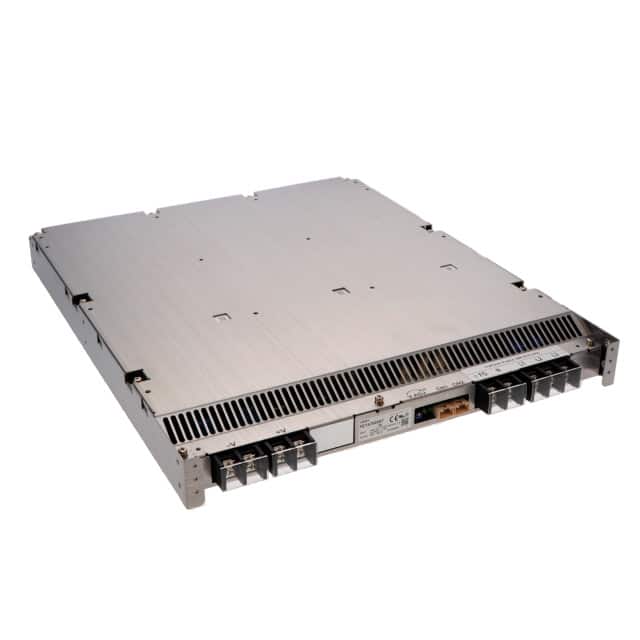

The Cosel FETA7000ST-48 is a high-power AC/DC converter designed for ITE (Commercial) applications. This enclosed unit features a robust chassis mount design and delivers a stable 48V DC output with a substantial current capability, supporting up to 7114W of power.
Key electrical specifications include an efficiency rating of 90.5% and an input voltage range of 170-264 VAC. The converter offers features such as adjustable output voltage and remote on/off control, providing flexibility in system integration. It operates within a temperature range of -10°C to 60°C with derating.
With dimensions of 475.0mm x 388.0mm x 43.0mm, the FETA7000ST-48 is designed for efficient power conversion in demanding environments. It holds multiple safety agency approvals, including CE, cURus, and D-Mark, ensuring compliance and reliability for commercial applications.
The nominal output voltage is 48V with a nominal output current of 52A. The output voltage is adjustable from 38.40V to 52.80V.
The input voltage range is 170-264VAC single-phase. Output derating is required at input voltages between 170V and 180V.
The operating temperature range is -10°C to 60°C with derating.
The typical efficiency is 91.5% at ACIN 230V with full load (Io=100%).
The dimensions are 475.0mm (length) x 388.0mm (width) x 43.0mm (height).
The maximum output power is 7114W.
