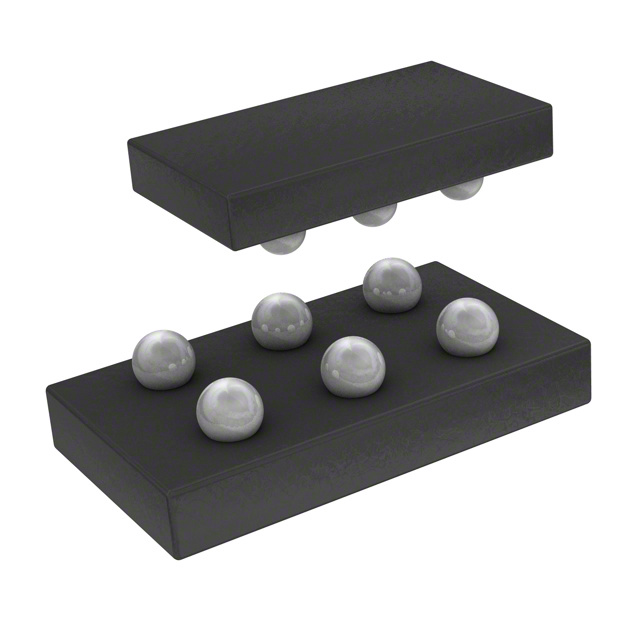

FDZ1323NZ The FDZ1323NZ is a dual N-Channel common drain MOSFET from On Semiconductor, rated for 20V drain-source voltage and 10A continuous drain current in a 6-WLCSP package.
Mfr Part #:

FDZ1323NZ

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FDZ1323NZ is a dual N-Channel common drain MOSFET from On Semiconductor, rated for 20V drain-source voltage and 10A continuous drain current in a 6-WLCSP package.
✓ Total Stock: 44,534 pcs
$ Price Range: $0.40 - $1.69

FDZ1323NZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
44,534 pcs
On Request
44534 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDZ1323NZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

FDZ1323NZ Description

Short technical summary and product information.

The FDZ1323NZ is a dual N-Channel common drain MOSFET manufactured by On Semiconductor, designed for space-constrained power management applications. It features a drain-source voltage rating of 20V and continuous drain current capability of 10A. The on-resistance is typically 13mΩ at Vgs=4.5V and Id=1A, enabling efficient switching. The device includes a logic level gate with a maximum gate threshold voltage of 1.2V at Id=250µA, making it suitable for low-voltage gate drive circuits.



With a maximum gate charge of 24nC at 10V and input capacitance of 2055pF at 10V, this device offers balanced switching performance. The maximum power dissipation is rated at 500mW, and it operates over a junction temperature range of -55°C to 150°C. The dual common-drain configuration allows convenient use in synchronous rectifier or load switch designs.



The MOSFET is housed in a compact 6-XFBGA, WLCSP surface-mount package with a supplier device package of 6-WLCSP (1.3x2.3). This ultra-small footprint makes it ideal for portable electronics where PCB space is at a premium. The package is rated MSL 1 (unlimited), simplified handling during assembly.

FDZ1323NZ Quick Information

Product Type: MOSFET Array
Series: PowerTrench
Canonical Name: FDZ1323NZ Dual N-Channel MOSFET
Subcategory: Dual N-Channel Array

FDZ1323NZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FDZ1323NZ Estimated Pricing

Qty Low High
1+ $1.69 $1.69
10+ $1.07 $1.07
50+ $0.80 $0.80
100+ $0.71 $0.71
500+ $0.56 $0.56
5,000+ $0.42 $0.42
10,000+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDZ1323NZ Features

  • Dual N-Channel common drain configuration.
  • 20V drain-source voltage rating.
  • 10A continuous drain current capability.
  • 13mΩ typical on-resistance at 4.5V drive.
  • Logic level gate for low-voltage control.

FDZ1323NZ Applications

  • Ideal for battery protection circuits.
  • Used in load switching in portable electronics.
  • Suitable for DC/DC converter output stage.
  • Common in low-voltage power management.
  • Compact WLCSP saves PCB space.

FDZ1323NZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the FDZ1323NZ?

20V.

What is the continuous drain current rating?

10A.

What package does the FDZ1323NZ come in?

6-XFBGA, WLCSP; supplier package 6-WLCSP (1.3x2.3).

What is the operating temperature range?

-55°C to 150°C (junction temperature).

Is the FDZ1323NZ RoHS compliant?

It is listed as RoHS3 Compliant but this is unverified.

What is the typical gate charge?

24nC maximum at Vgs=10V.
